Hengstler Digital Counters
721
Easy operation and many setting options characterise the Signo 721 preset counter. It provides very high counting frequencies of up to 60 kilohertz and features a large 5-digit LCD display. It is backlit and easy to read.

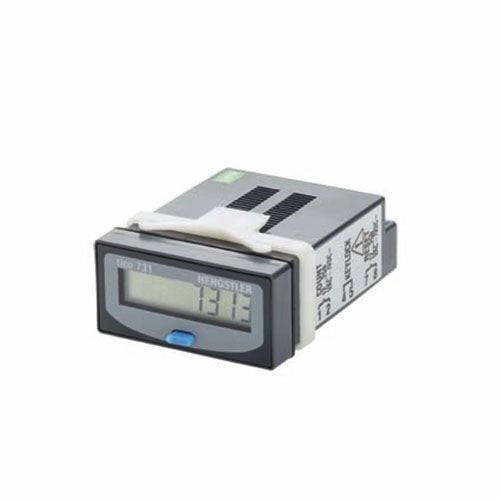

731
The five members of the Tico 731 family are characterised by their versatility and are available as counters, tachometers or timers. The smaller, compact Tico 731 has a clearly readable display with two display options, either as an 8-digit LCD or as a 6-digit LED version. Voltage supply can be from 12 to 24 volts DC or independent of the power supply using a lithium cell. The counting frequency and triggering edge can be programmed to suit the application. The high-voltage version enables input pulses of between 12 and 250 volts AC/DC. The Tico 731 can be equipped with the following optional functions: pulse evaluation, decimal point and output signal.

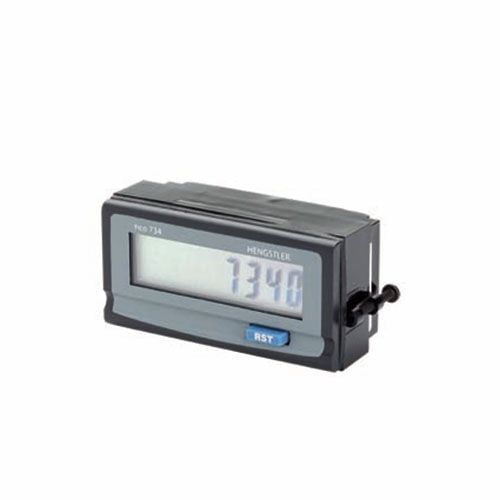

734
The Tico 734 is suitable for use as a totalizing counter, preset counter, tachometer, timer or position monitor. It has a large backlit 8-digit LCD display and has a remarkably slim construction. Voltage supply is independent of the power supply via an interchangeable lithium cell. There are a total of 10 versions available with a range of different functions but all with the same design.

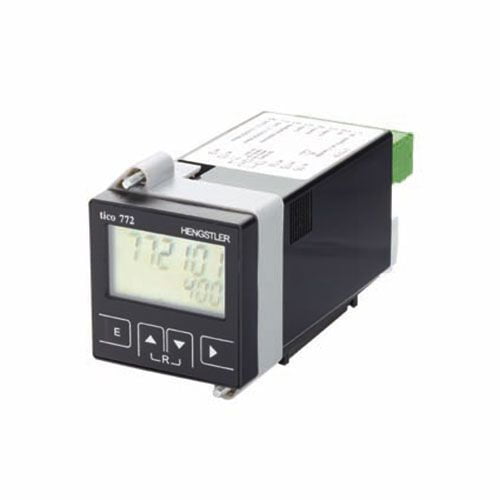

772 / 773 / 774
The members of this product family are really multitalented, feature up to three presets and can be connected up using plug-and-play connectors. They allow very high counting frequencies of up to 60 kilohertz and are universally suitable for use as pulse-counters, tachometers, timers, shift or batch counters. The large multi-coloured 6-digit display is backlit and easy to read. The flexibility of the programming levels offered by this multifunctional counter allow it to be used as a totalizing counter and, if required, with many programmable functions.
