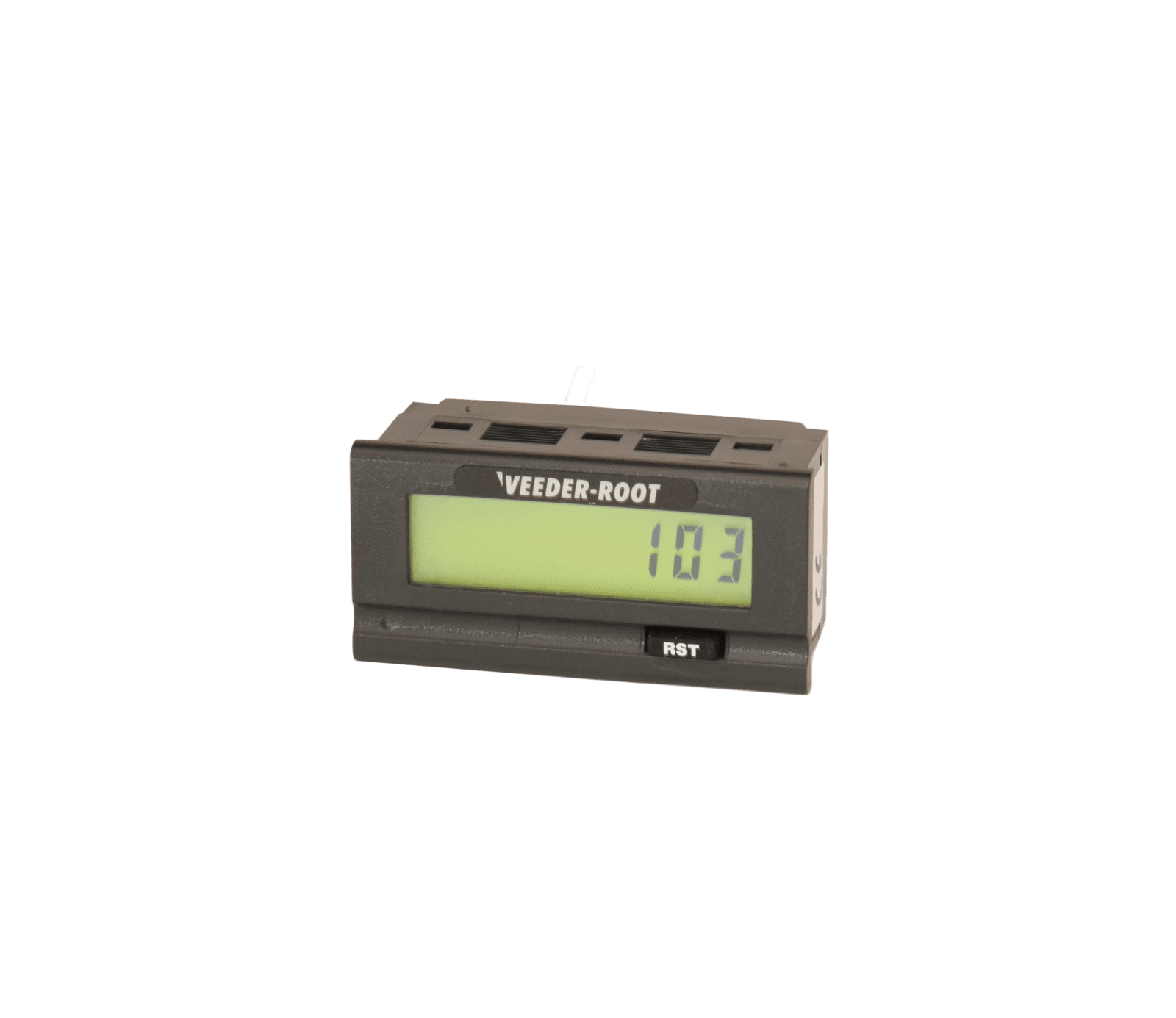

A103 Time Totalizers
The A103 Elapsed Time Indicators provide a range of capabilities unequaled in products of similar size and cost. A single model can be programmed to display in seconds, minutes, hours, or hours: minutes: seconds. The A103 series also includes matching indicators for count totalization and rate metering, as well as models with a preset output for control by count or time.

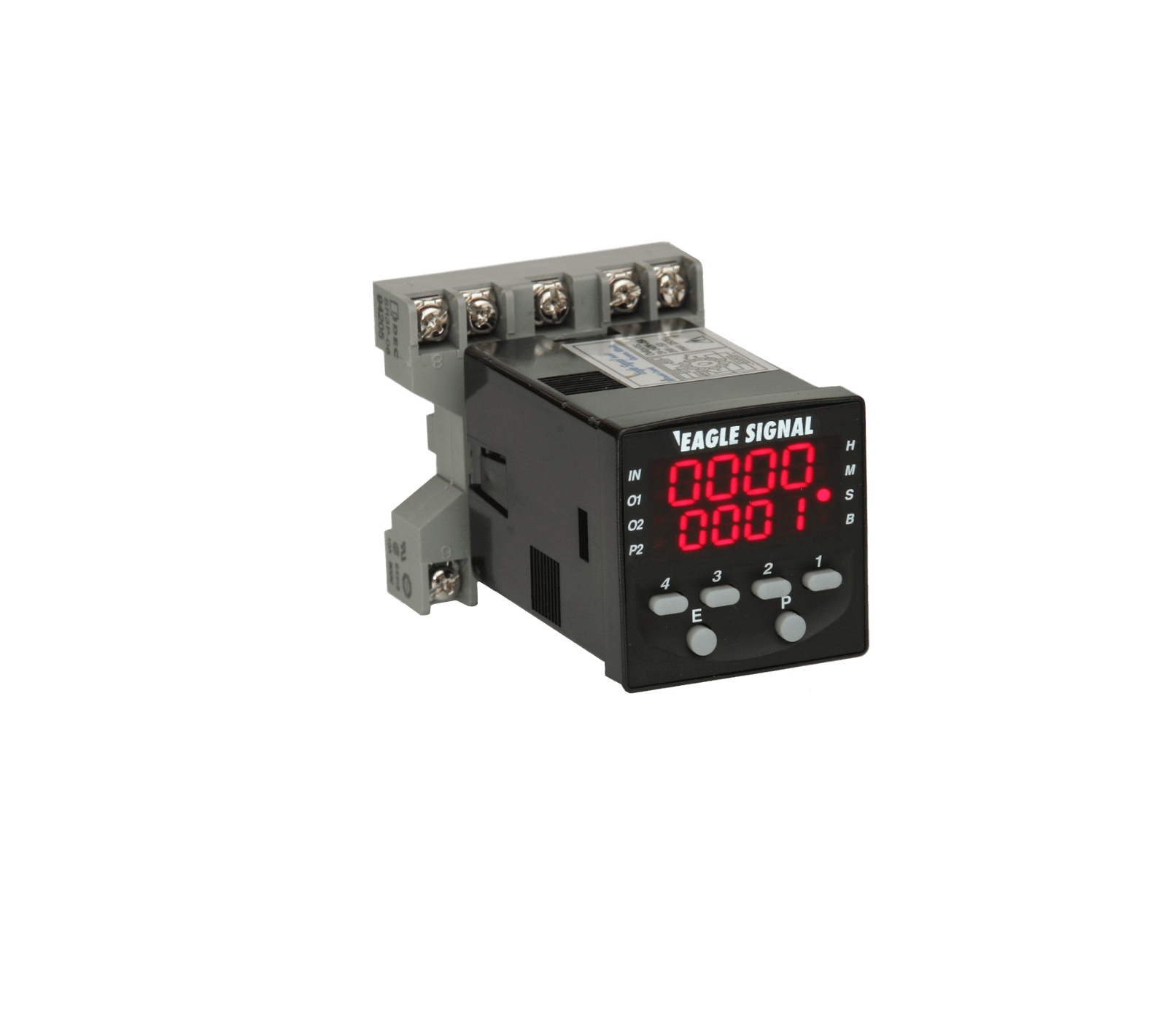

B506 Programmable
Designed as the "best" fit timer for most applications, the B506 family is divided into 3 separate base models. The standard unit offers a wide range of field selectable operating modes and time ranges as well as a host of other convenient features. The high performance model is a good choice when advanced functions such as dual setpoints and 1 millisecond resolution are required. The repeat cycle model provides a variety of benefits specifically tailored for cyclical operations.

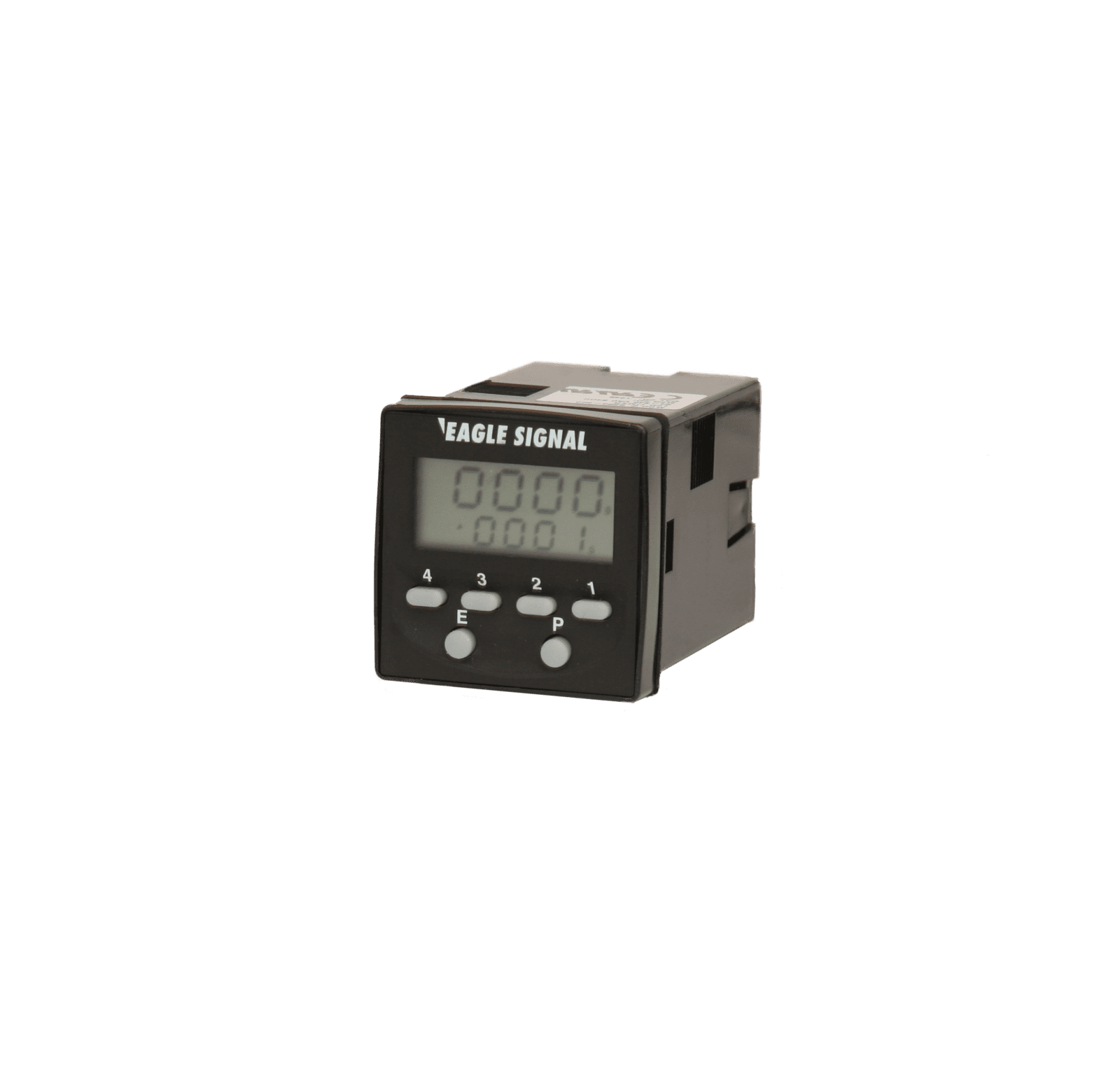

B856 Multi-Function
The B856 features a compact 1/16 DIN package, precise digital setting, versatile functionality, and a straightforward button-per-digit interface. It can be easily programmed to perform any standard timing operation: On-Delay, Off-Delay, Interval, or Repeat Cycle. A unique On-Delay/ Interval Mode can, in many cases, perform the function of two separate timers.

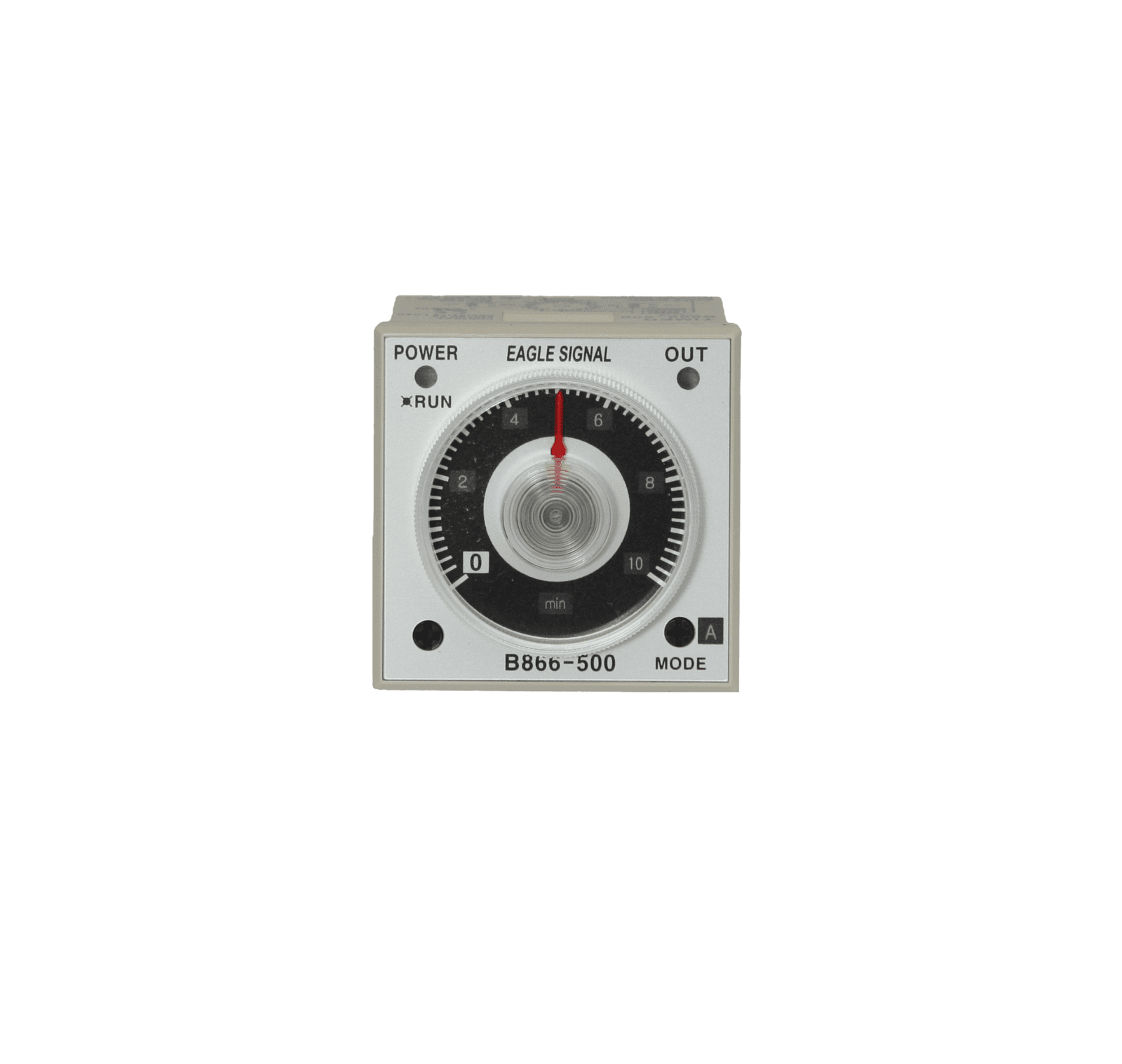

B866 Multi-Function Analog
A unique combination of versatility and simplicity make the Eagle Signal brand B866 the premiere low cost timing solution. Housed in a compact 1/16 DIN package, changing the set time is as simple as turning a dial. Selectable time ranges provide preset times ranging from 0.06 seconds to 10 hours.

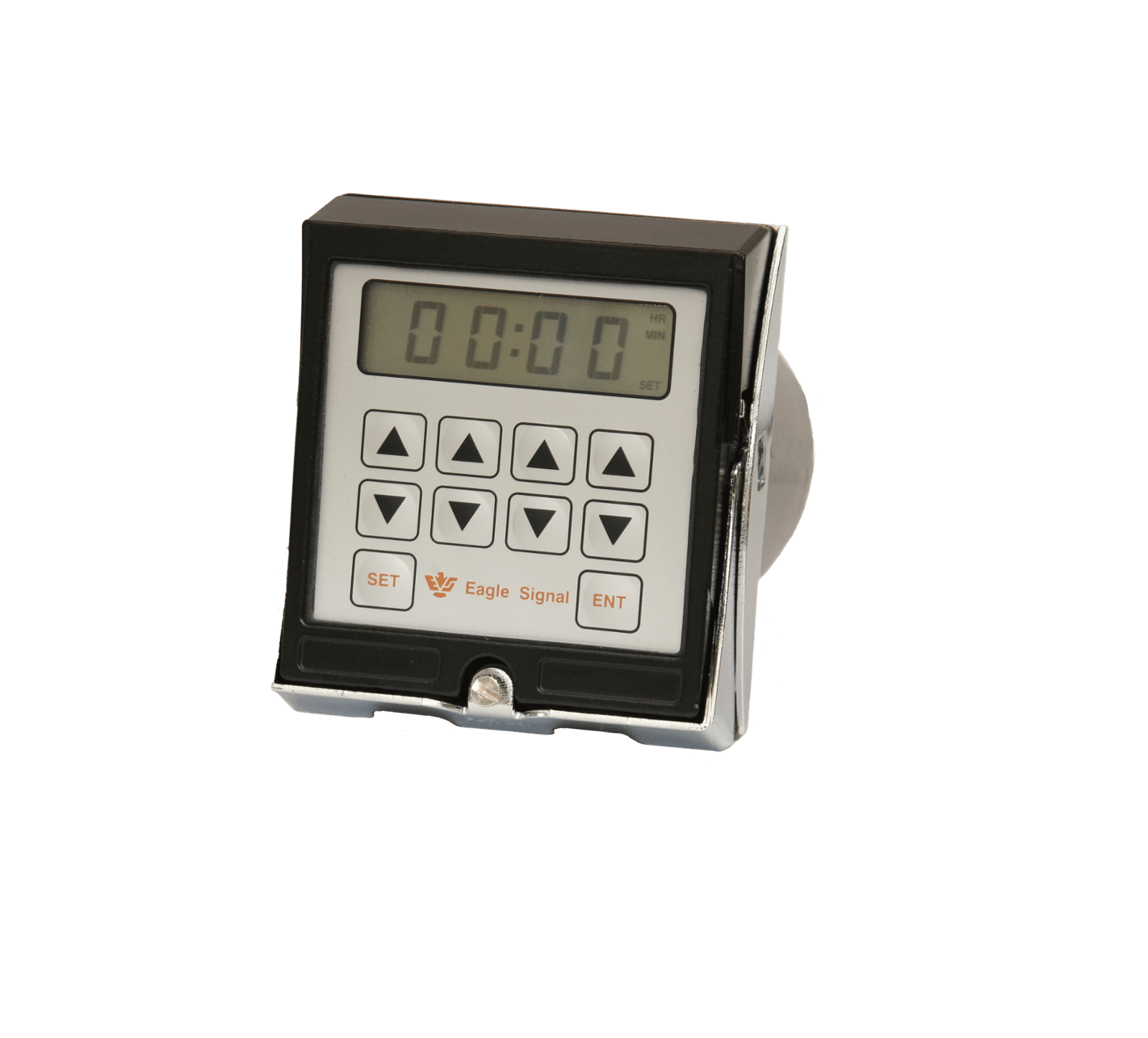

CX Series CYCL-FLEX Timer/Counter
The CX is a microprocessor based timer/counter housed in a standard 15 terminal CYCL-FLEX® plug-in case. Time or count operation, time range, and standard or reverse start operation is selected by 7 miniature rocker switches located inside the unit housing.

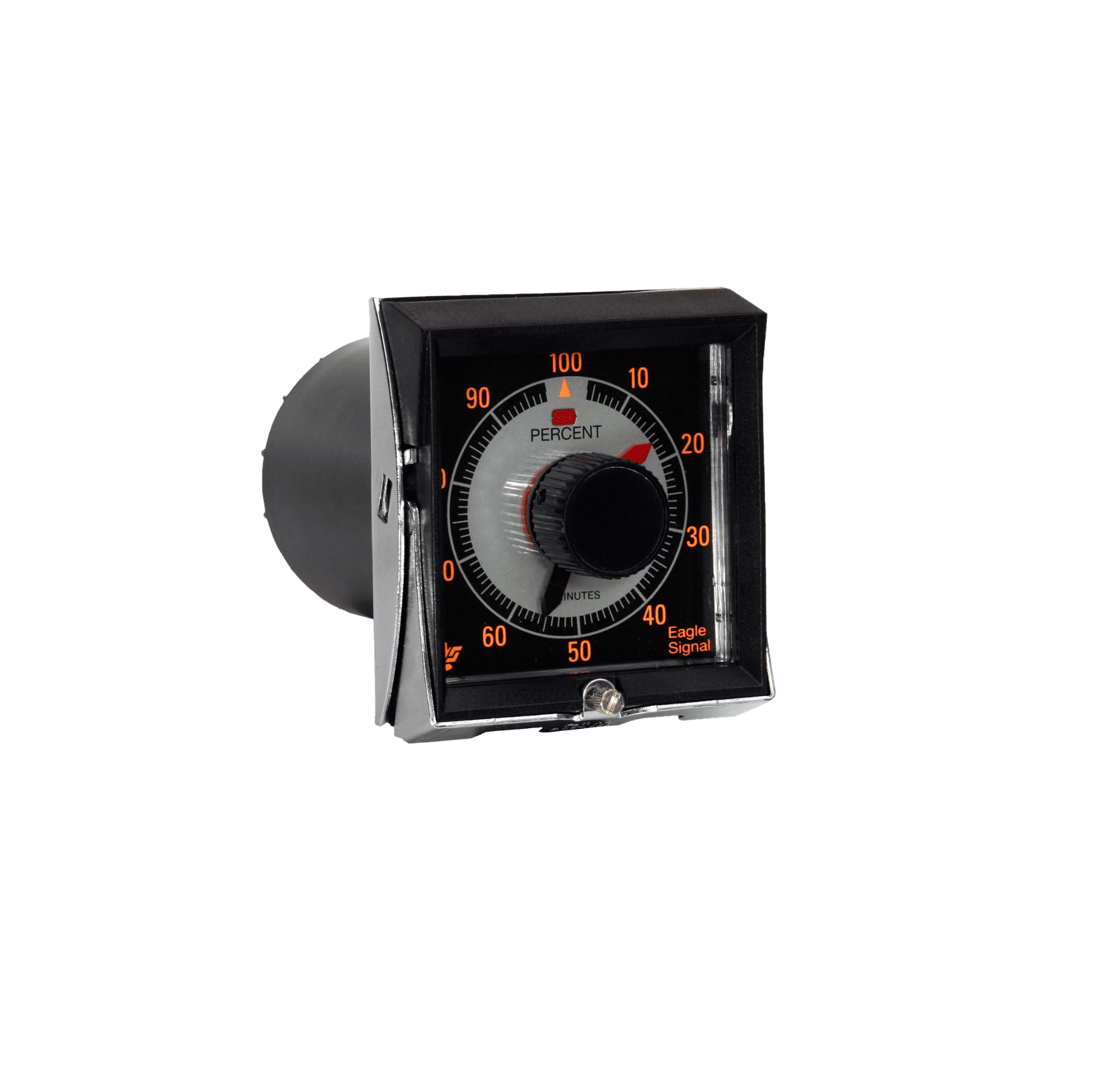

HQ4E Percentage
The HQ4E series 48 percentage timer is an accurate, economical, enclosed percentage timer designed for use in applications where a repetitive ON time of a fixed cycle needs to be variable. The HQ4E series 48 percentage timer is ideally suited for: Irrigation controls, Chemical feeding, Program temperature controls, Electric heaters, ovens, Motor control, Lubrication systems.

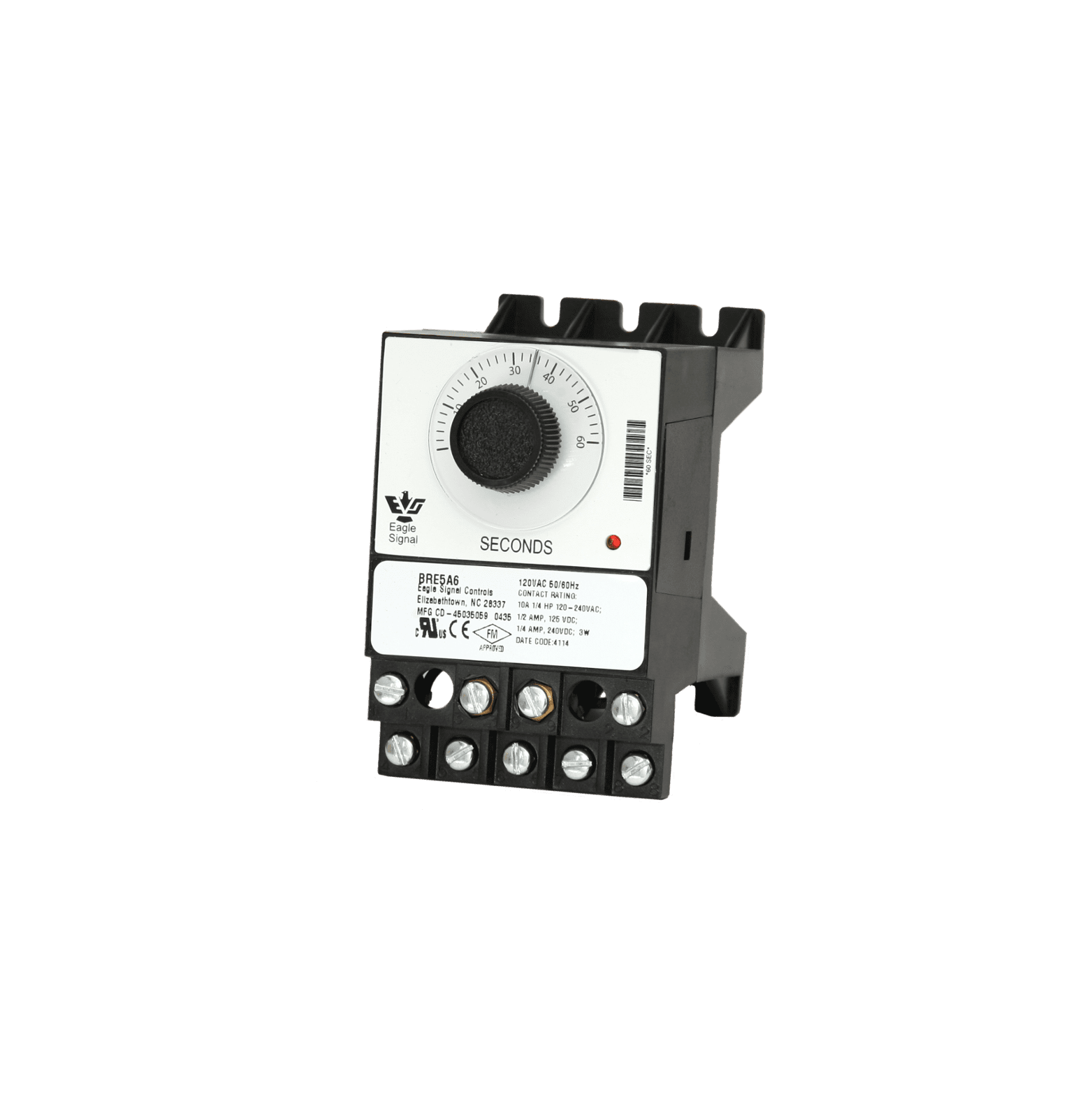

BRE Reset Timers
The BRE series reset timers are microprocessor driven. They provide an accurate adjustable time delay between the actuation of the control circuit and the operation of the load switches.
DA100/DA200 Repeat Cycle
The DA is a solid state ON/OFF repeat cycle timer housed in a 1/8 DIN case. The timer uses CMOS integrated circuits for the timing function. Sixteen time ranges are available in many combinations of ON and OFF periods.
DG100/DG200 Series
The DG100 is a solid state timer housed in a 1/8 DIN, molded NORYL® case. The timer uses CMOS integrated circuits for the timing function. The DG100 series timer is available in 16 time ranges from 3.5 seconds to 30 hours. The DG200 series timer is a microprocessor based, four digit reset timer housed in a 1/8 DIN style enclosure. There are four time ranges from 99.99 seconds to 99 hours and 99 minutes.

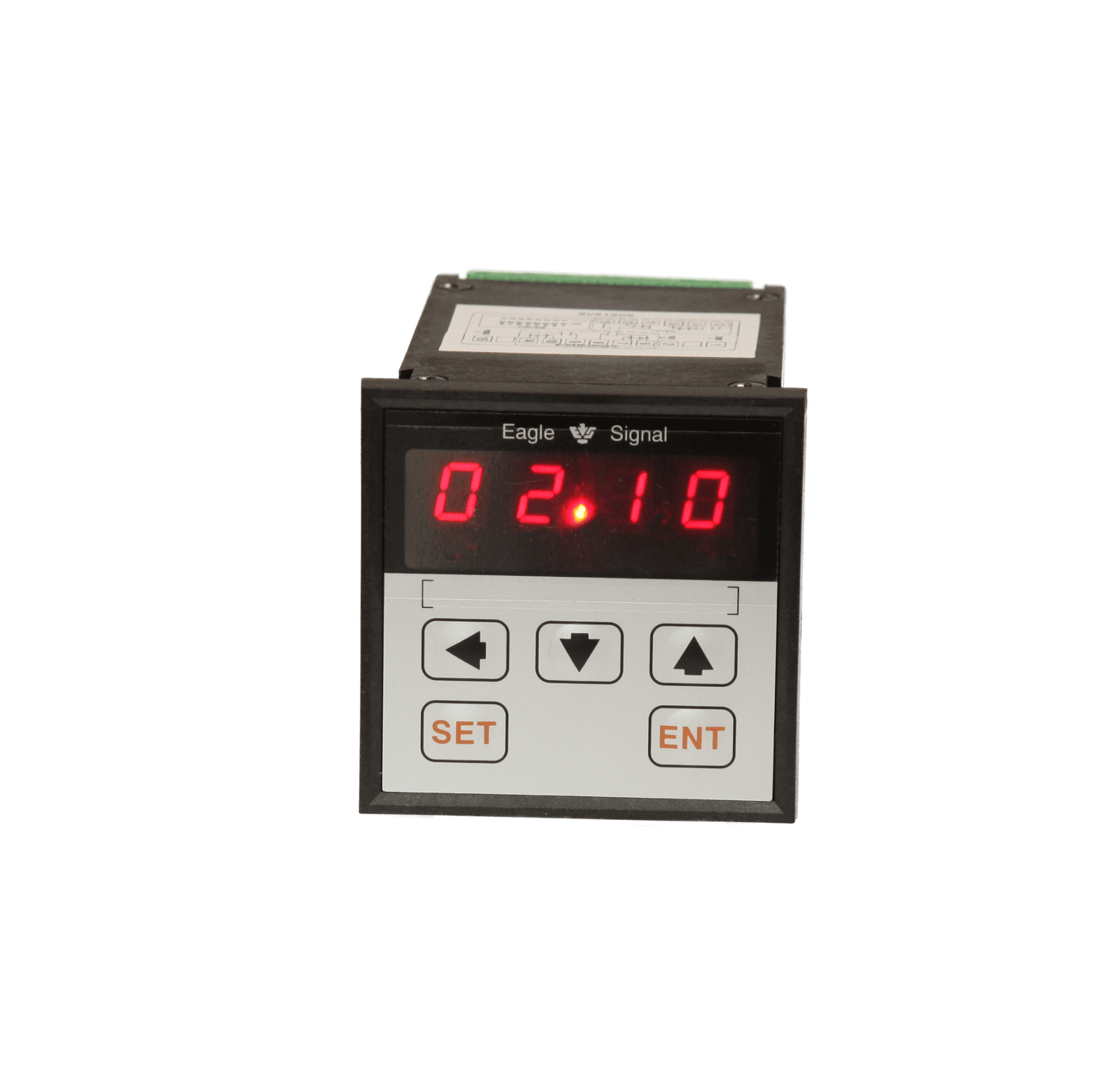

SX Series Digital
The SX Series Counter is a microprocessor based, 6 digit counter housed in a standard DIN style case (68 mm square cutout). The small case and front bezel require minimal panel space, yet provides large, easy to read 36 inch LED display.
