Technical Specs
Brands |
N/A
 Autonics |
Model |

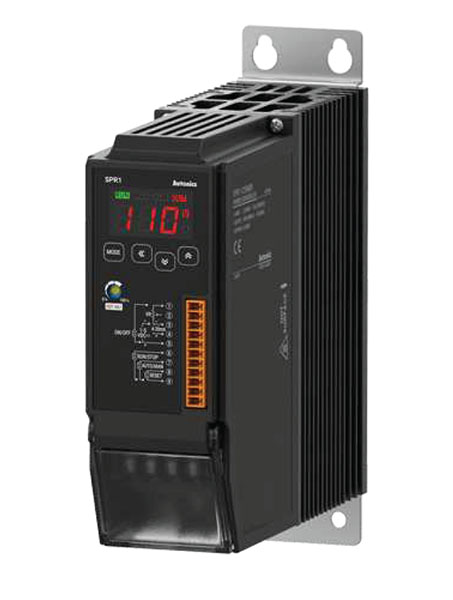

N/A SPR1 |
Type |
N/A Controller |
Control Phase |
N/A Single-Phase |
Insulation Resistance |
N/A ≥ 200 MΩ (500 VDC, Megger) |
Cooling Method |
N/A
Rated load current 25/35/50 A: natural cooling Rated load current 70/100/150 A: forced air cooling (with cooling fan) |
Dielectric Strength |
N/A Between the charging part and the case: 3,000 VAC~50/60 Hz for 1 minute |
Vibration |
N/A 0.75 mm double amplitude at frequency of 5 to 55 Hz in each X, Y, Z direction for 2 hours |
Vibration (Malfunction) |
N/A 0.5 mm double amplitude at frequency of 5 to 55 Hz in each X, Y, Z direction for 10 minutes |
Ambient Temperature |
N/A -10 to 55 ºC, Storage: -20 to 80 ºC (No freezing or Condensation) |
Ambient Humidity |
N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation) |
Indicator |
N/A Operation / Manual Control Indicator (Green) Alarm / Output / Unit (V, A) Indicator (Red) |
Certification |
N/A
 |
Features
|
|
