Technical Specs
Brands |
N/A
 Dynapar™ |

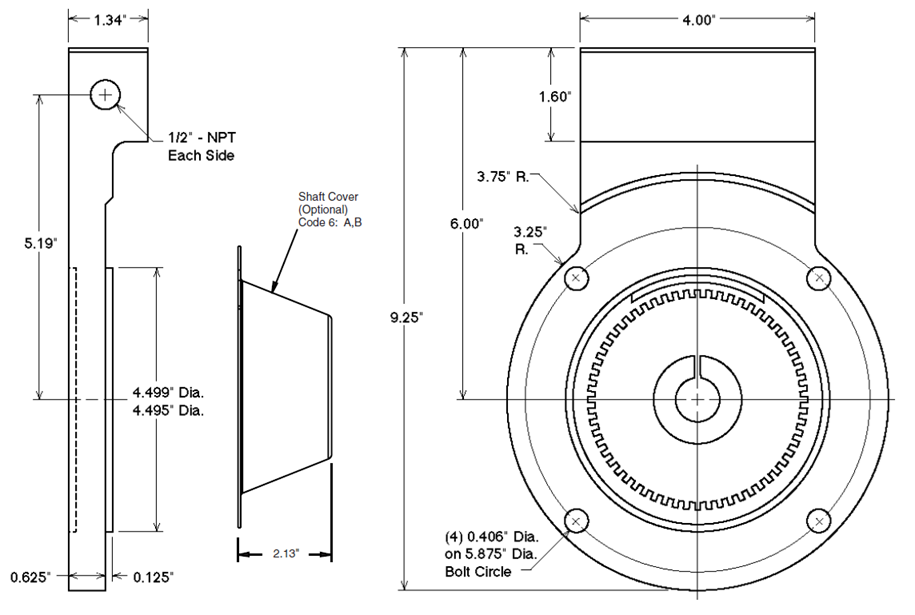

Model |

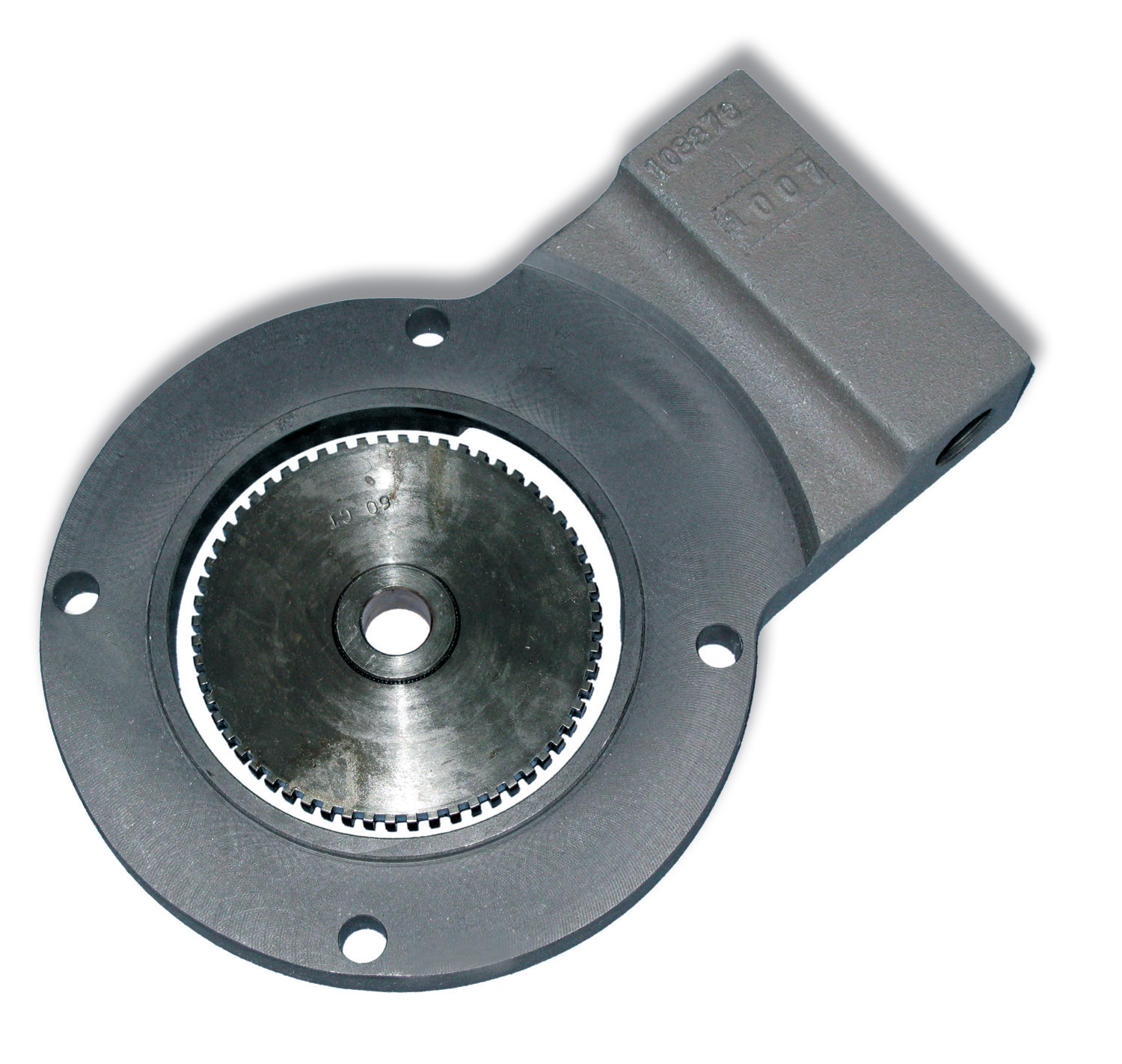

N/A R45 |
Type |
N/A Heavy-Duty Bearingless Ring Kit |
Code |
N/A Incremental Magnetic |
Resolution |
N/A 60 PPR (pulses/revolution), optional 120 PPR with X2 output |
Format |
N/A Single channel unidirectional (A), or two channel quadrature (AB) outputs |
Phase Sense |
N/A A leads B for CW rotation of motor shaft |
Quadrature Phasing |
N/A 90º ±45º Electrical |
Symmetry |
N/A 180º ±36º Electrical |
Waveforms |
N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf |
Certification |
N/A
 |
