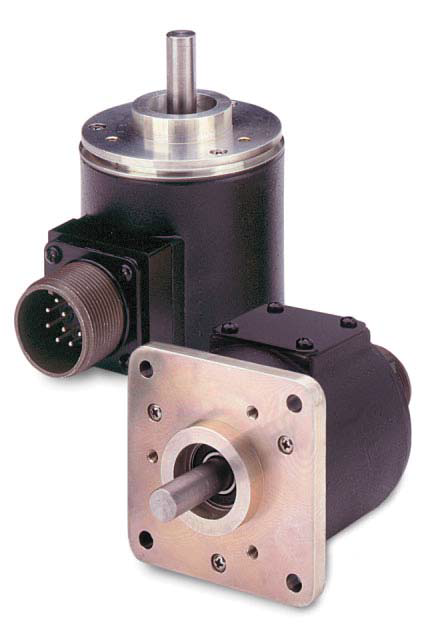

The Harowe™ R25 heavy-duty brushless resolvers are designed for reliability in adverse operating conditions. Resolvers are the better choice over encoders for applications that involve very high temperature, vibration and shock and/or dirty environments. R25s will quickly recover their cost by eliminating frequent downtime caused by less robust transducers. You can trust the R25 to operate reliably 24 hours a day, 365 days a year in the worst industrial environments.
Unit of Measure

Technical Specs

Brands

 N/A
Harowe™

Model

 N/A R25

Type

 N/A Industrial Resolver

Inertia

 N/A 0.0040 oz-in-sec²

Friction

 N/A 2 oz·in

Friction with Shaft Seal

 N/A 5 oz·in

Maximum Axial Shaft Load

 N/A 40 lb

Maximum Radial Shaft Load

 N/A 60 lb

Shaft Material

 N/A #416 Stainless Steel (SS)

Bearing Life

 N/A 2 × 108 revs at rated shaft loading

Certification

 N/A

Features

N/A

  • Rugged housing with IP-65 protection rating
  • Ideal for high temperatures, high shock environments
  • Standard MS-style connectors

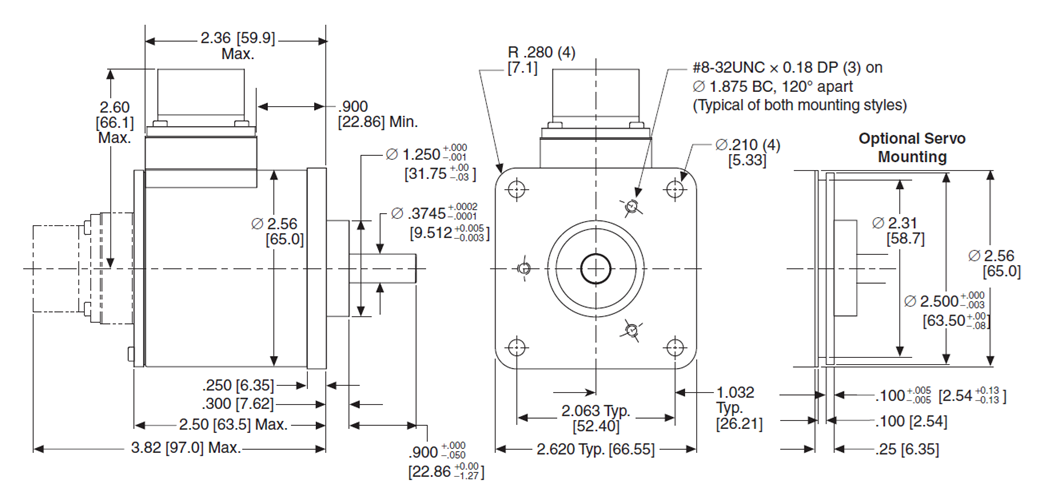

  • Flange- and servo-mount styles
  • Shielded, spaced-support bearings provide up to 10X the life of duplex bearings
  • Excellent noise immunity
  • Standard +125 ºC continuous duty operating rating
  • Corrosion resistant finishes
  • Accuracy grades from ± 7 to ± 20 arcmin
  • Withstands shock to 200 g, vibration to 40 g

Additional Information

N/A Unlike similar duplex-bearing packages, the R25 uses a front-and-rear bearing arrangement. This provides from two to three times the radial load bearing capacity and up to ten times the L10 life of a package with duplex bearings. The increase in load bearing capacity applies equally to static, dynamic, and shock loading.
