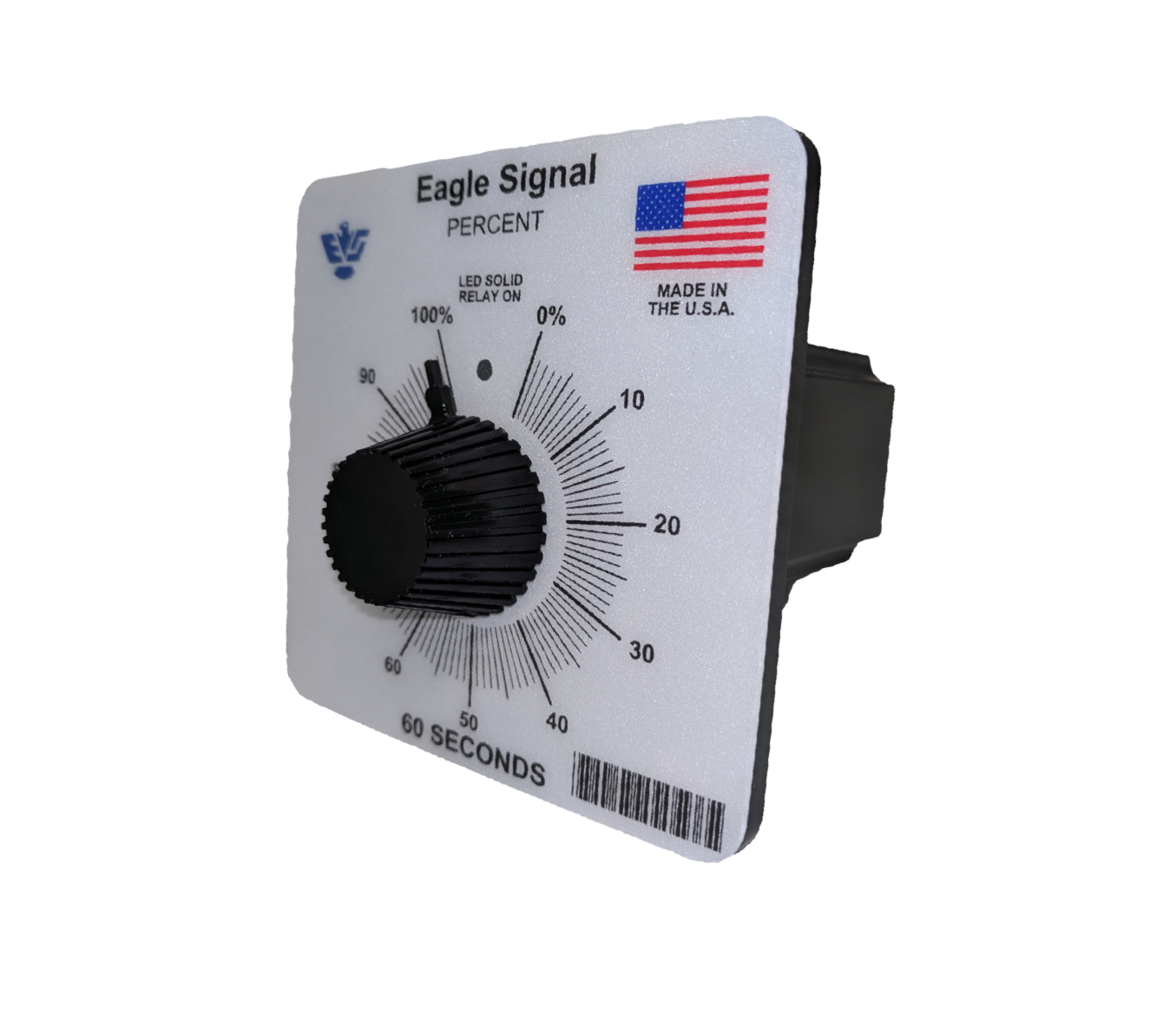

Direct Replacement for HQ4E® Percent Timer & ATC Percent Timer The NEW CYCL-TIME™ Percent Timer Series is an accurate, economical, enclosed percentage timer designed for use in applications where a repetitive "on" time of a fixed cycle needs to be variable This timer series is ideally suited for irrigation controls, chemical feeding, programmed temperature, electric heaters, ovens, motor controls and lubrication systems.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A CT4

Type

 N/A Timer

Alternating Current (AC) Supply Voltage

 N/A 120 V240 V

Supply Voltage Tolerance

 N/A +10 %-15 %

Frequency

 N/A 50 Hz60 Hz

Power Consumption

 N/A 1.2 W

Release of Input Voltage

 N/A 10 %

Electrical Endurance

 N/A 30,000 cycles

Contact Material

 N/A Silver Tin Oxide

Relative Humidity

 N/A 25 to 85 %

Warranty

 N/A 2 years

Features

N/A Functional Improvements over HQ4E Percent Timers & ATC Percent Timers

  • Better connections for safer, faster installation
  • Enclosed electronics
  • Upgraded potentiometer
  • Enclosure is fastened behind the panel with no penetration through the front plate
  • Finger-safe terminal block with cover
  • UL Recognized and CE compliant
  • Robust potentiometer ensures the pointer remains at set point
  • Hard mechanical stops at 0% and 100%
  • Resists water, dust or other ingress

Additional Information

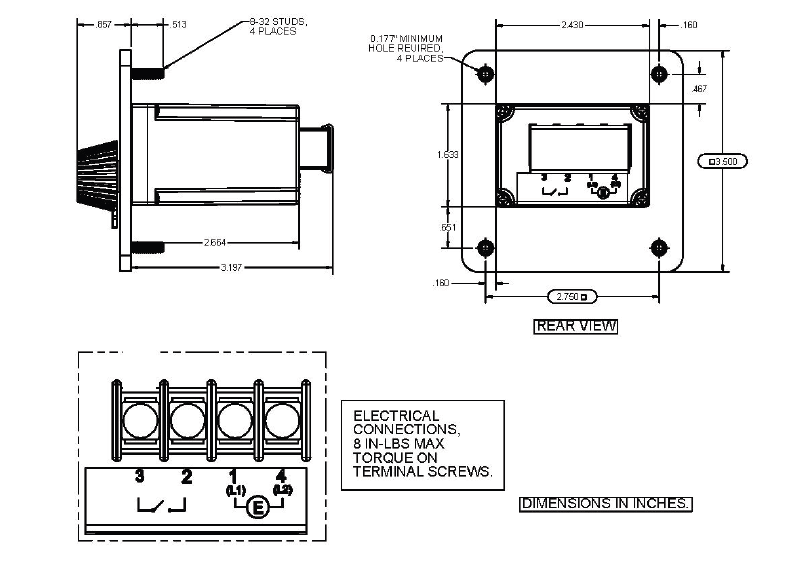

N/A The panel mounted units have an easy to set dial. Four bolts at the corners of the front dial plate make it easy to securely mount the timers in panels up to 1/4 inch thick. The timers have dimensions that fit the same cutout as the Eagle Signal HQ4E making these a suitable replacement unit. The load relays are enclosed for environmental protection. Electrical connections are made to the terminal block strip on the rear of the unit.
