High Robustness for Maximum Uptime

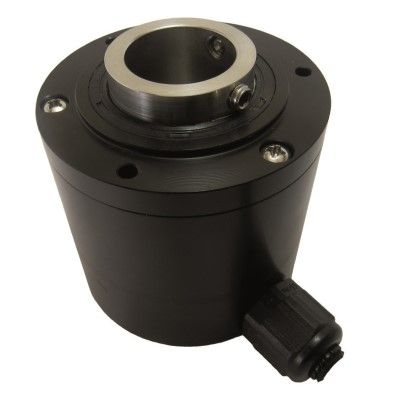

The AG25 Heavy-Duty Encoder is a speed/rotation sensor dedicated to off-road vehicles (OHV) in agricultural applications.

Its construction is robust, with resistant plastic casing, resin sealed electronics, stainless steel shafts and screws and automotive connectors.

These characteristics combined with magnetic sensing technology make AG25 fully resistant to chemical contaminants common in the field, such as fertilizers (including NPK), oils and dust.
Unit of Measure

Technical Specs

Brands

 N/A
Dynapar™

Model

 N/A AG25

Type

 N/A Encoders

Maximum Speed

 N/A 500 rpm

Starting Torque

 N/A 0 N·cm

Maximum Runout (Assembly Shaft) (±)

 N/A 0.13 mm

Endplay (Assembly Shaft) (±)

 N/A 0.6 mm

Shaft Diameter

 N/A 1 in., Hub shaft (Semi-Hollow)

Shaft Mounting

 N/A 2 Headless Screws (Stainless Steel)

Key Features

N/A

  • Magnetic technology sensor
  • 180, 360 or 512 PPR resolutions
  • Resistant to corrosion by chemical agents (including NPK)
  • 70 mm external diameter
  • Operating temperature from 0ºC to 70ºC
