Technical Specs
Brands |
N/A
 Hengstler |
Model |
N/A AM64 |
Type |

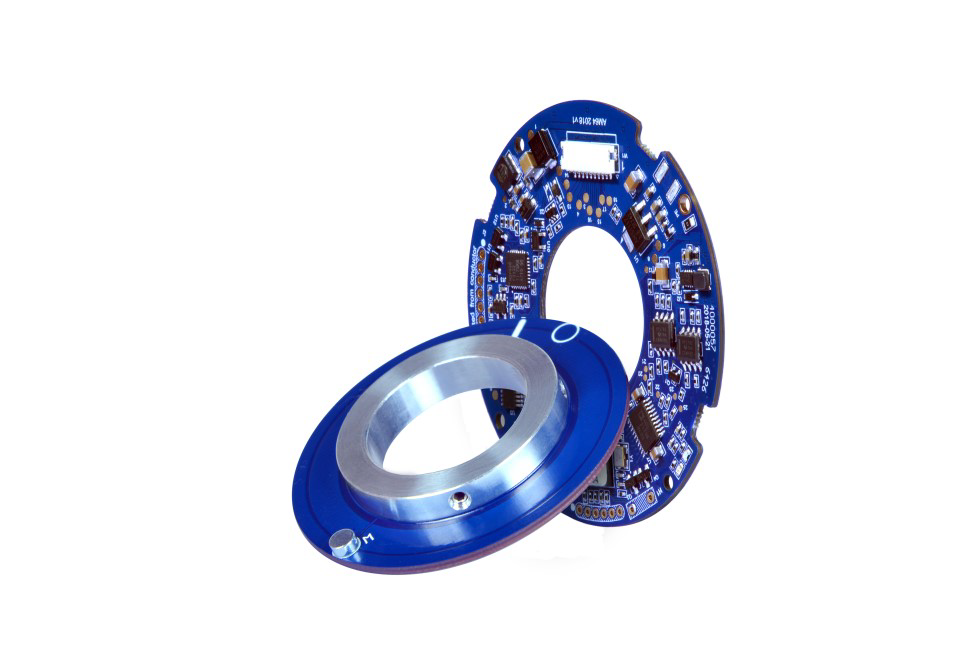

N/A Absolute Encoder |
Out-Diameter |
N/A 64 mm |
Bore Size |
N/A 12 mm15 mm17 mm20 mm25 mm |
Note for Bore Size |
N/A Other size on request |
Mounting |
N/A Printed Circuit Board (PCB): 4 x 2.2 |
Ingress Protection (IP) Rating (EN 60529) |
N/A Ingress Protection (IP00) |
Allowable Axial Runout (±) |
N/A 0.1 mm |
Allowable Radial Runout (±) |
N/A 0.1 mm |
Maximum Speed |
N/A 3,500 rpm |
Note for Maximum Speed |
N/A Higher speed on request |
Certification |
N/A
 |
