Technical Specs

Brands

 N/A
Dynapar™

Hengstler

Model

 N/A AR62/AR63

Type

 N/A Absolute Encoder

Code

 N/A Absolute Magnetic

Absolute Accuracy (±)

 N/A 1 º

Repeatability (±)

 N/A 0.2 º

Shaft Diameter

 N/A 3/8 in10 mm

Maximum Shaft Speed

 N/A 5,000 rpm

Maximum Axial Shaft Load

 N/A 300 N

Maximum Radial Shaft Load

 N/A 300 N

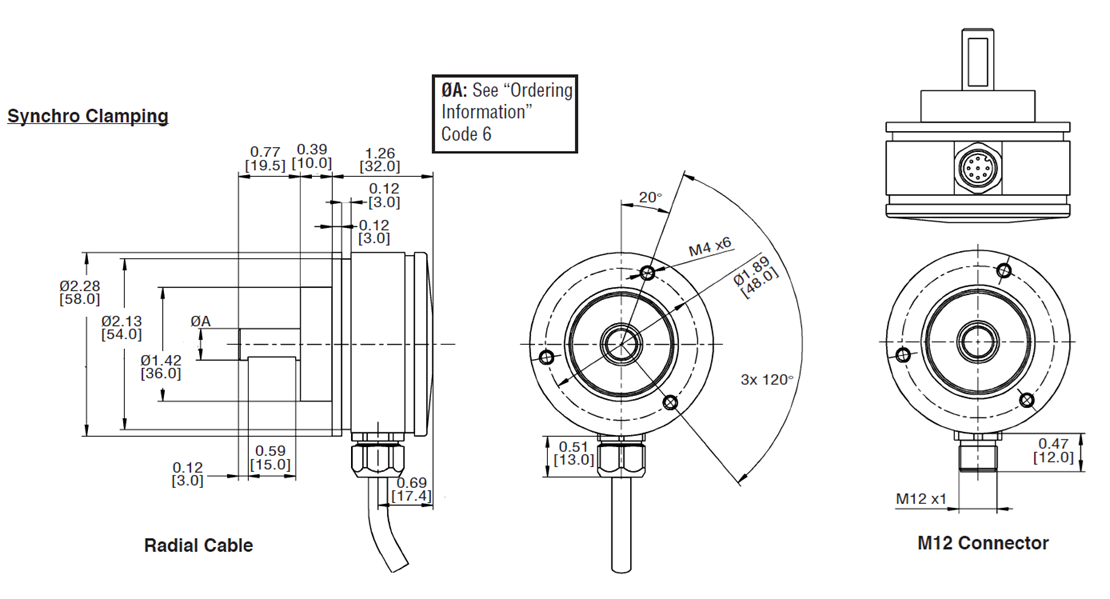

Mounting Depth

 N/A 32 mm

Certification

 N/A

Key Features

N/A

  • 12 Bit Single-Turn Resolution, up to 16 Bit Multi-Turn
  • Stainless Steel or Aluminum Housing
  • Wide -40º to 100ºC Temperature Range
  • Submersible - IP69K Sealing Available
  • Rated to 200g Shock, 20g Vibration for Harsh Environments
  • Oversized Bearings for up to 3x Life of Standard Absolute Encoders
