Technical Specs

Brands

 N/A
Dynapar™

Hengstler

Model

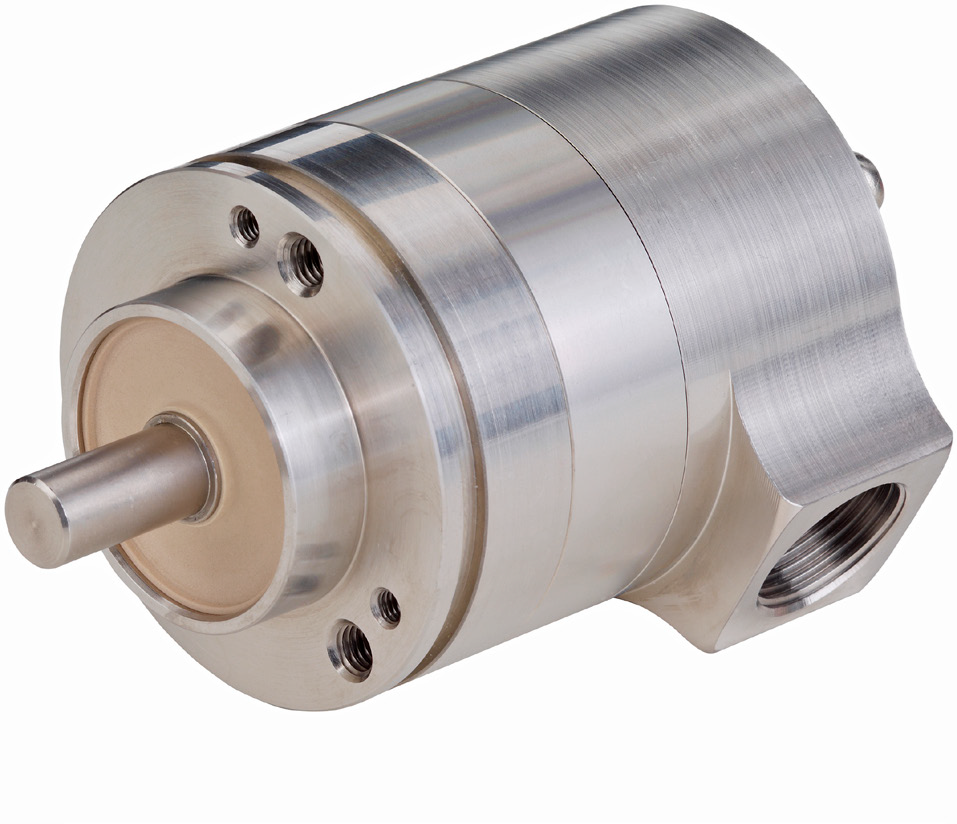

 N/A AX65

Type

 N/A Absolute Encoder

Code

 N/A Absolute Magnetic

Resolution (Single-Turn)

 N/A 12 bits

Absolute Accuracy (±)

 N/A 1 º

Repeatability (±)

 N/A 0.2 º

Certification

 N/A

Mechanical

Shaft Diameter (Solid Shaft)

 N/A 10 mm

Shaft Material

 N/A Stainless Steel

Maximum Axial Shaft Load

 N/A 300 N

Maximum Radial Shaft Load

 N/A 300 N

Key Features

N/A

  • Explosion Proof Absolute
  • 12 Bit of Single-turn, 12 or 16 Bit of True Multi-turn Absolute Positioning
  • ATEX and IECEX certification for Mining, Gas and Dust
  • Extreme Corrosion Resistance: High Grade Stainless Steel Housing
  • Protection class up IP66/ IP67
  • CANopen or SSI Communications
