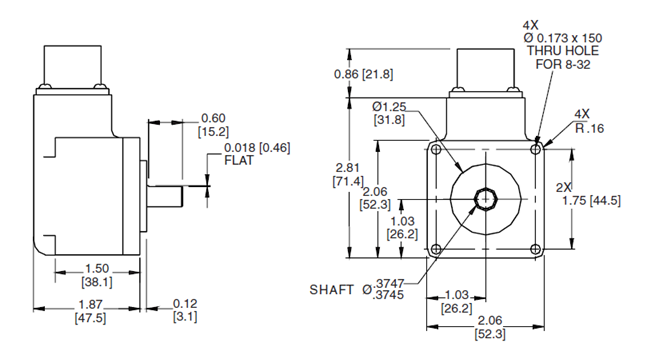

Technical Specs

Brands

 N/A
Dynapar™

NorthStar™

Model

 N/A HD20-HDOE

Type

 N/A Harsh Duty Optical Incremental Encoder

Code

 N/A Incremental Optical

Resolution

 N/A 1 to 20,000 pulses/rev

Format

 N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs

Phase Sense

 N/A A leads B for CCW shaft rotation viewing the shaft end of the encoder

Quadrature Phasing

 N/A 90º ±30º Electrical

Symmetry

 N/A 180º ± 25º Electrical

Index

 N/A 180º default gated to B low

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

  • Size 20 Heavy-Duty Encoder with Single or Dual Isolated Outputs
  • Unbreakable Code Disc up to 20,000 PPR
  • Special Housing and Seals for IP67 Rating
  • Anodized Aluminum, Stainless Steel, or Nickel Plated Housing
