Unit of Measure

Technical Specs

Brands

 N/A
Dynapar™

NorthStar™

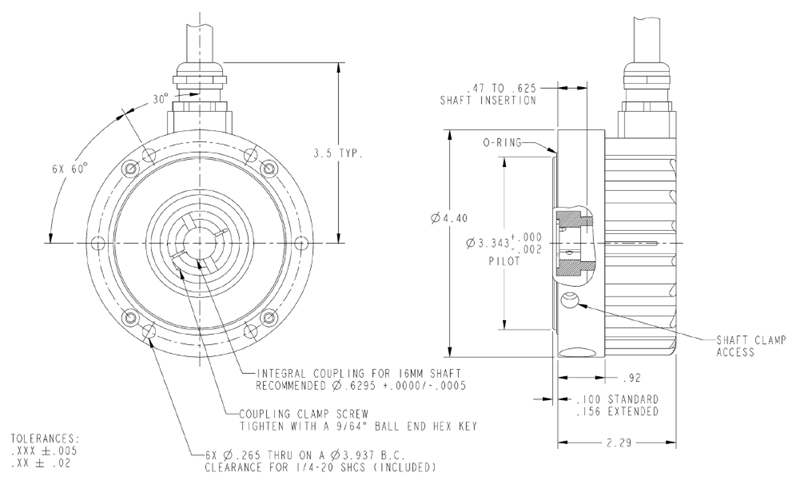

Model

 N/A HSD44-HDOE

Type

 N/A Extreme Heavy-Duty Encoder

Code

 N/A Incremental Optical

Resolution

 N/A 1,024 pulses/rev2,048 pulses/rev

Format

 N/A Two channel quadrature (AB) with Index (Z) and complementary outputs

Phase Sense

 N/A A leads B for CCW shaft rotation viewing the shaft clamp end of the encoder

Quadrature Phasing

 N/A 90º ±15º Electrical

Symmetry

 N/A 180º ±18º Electrical

Index

 N/A 180º default gated to B low

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

  • Integral Flexible Coupling Compensates for Motor Shaft Runout and Endplay
  • Electrically Isolated Shaft Protects Internal Bearings
  • Perfect for Off-Highway Vehicle Applications
  • Robust Survivability with 400G Shock and 20G Vibration
  • Special Pilot Flange for Motor Mounting
