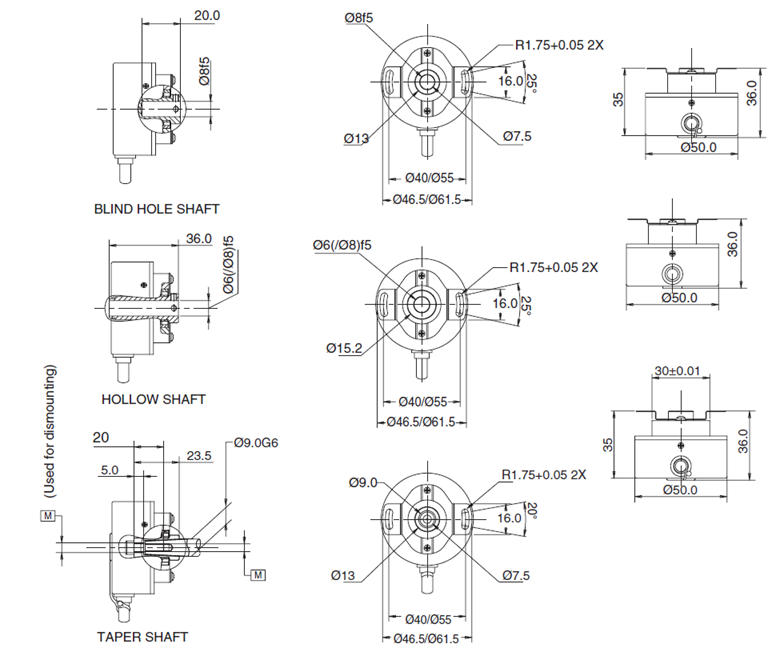

Dynapar™

Model

 N/A HC20

Type

 N/A Incremental Encoder

Code

 N/A Incremental Optical

Resolution

 N/A 500 to 2,500 pulses/rev

Commutation

 N/A 4 Pole 6 Pole 8 Pole

Format

 N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs

Phase Sense

 N/A Phasing for CCW rotation of motor shaft (viewing from encoder cover side): A leads B by 90º ± 22.5º electrical, and U leads V leads W by 120º

Index

 N/A 90º Electrical (Gated A and B High)

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

  • Economical Servomotor Feedback with New Phased Array ASIC
  • High 120ºC Operating Temperature Won't Limit Motor Performance
  • Up to 2500 PPR Direct-Read with Commutation Channels
