Technical Specs
Brands |
N/A
 Dynapar™ |

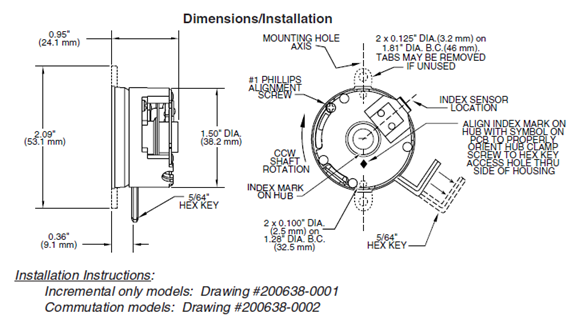

Model |
N/A M15 |
Type |
N/A Incremental Encoder |
Code |
N/A Incremental |
Resolution |
N/A
Incremental: 200 to 1024 PPR Commutation: 4, 6, or 8 pole |
Accuracy |
N/A
Incremental: ±5 arc-mms. max. edge to edge Commutation: ±6 arc-mins. max. |
Sense |
N/A
Viewing encoder mounting surface Incremental: A leads B by 90º for CCW rotation of motor shaft Commutation: U leads V, V leads W by 120º for CW rotation of motor shaft |
Phasing |
N/A
Incremental: 90º ±18º electrical Commutation: 8 Pole: 30º; 6 Pole: 40º; 4 Pole: 60º mechanical Index to U Channel: ±1º mechanical - Index center to U channel edge |
Symmetry |
N/A
Incremental: 180º ±18º Electrical Commutation: 8 Pole: 45º; 6 Pole: 60º; 4 Pole: 90º mechanical |
Index Pulse Width |
N/A 180º ±36º Electrical (Gated with B low) standard |
Certification |
N/A
 |
