Technical Specs
Brands |
N/A
 Dynapar™ |

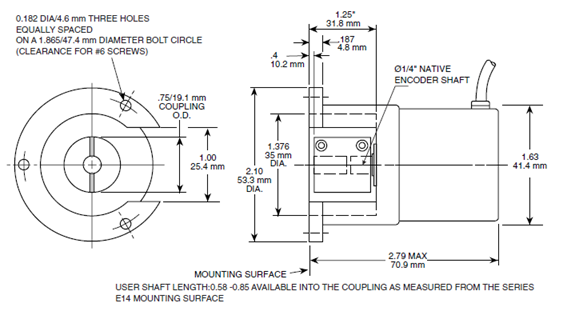

Model |
N/A E14IC |
Type |
N/A Miniature Encoder |
Code |
N/A Incremental Optical |
Resolution |
N/A 100 to 2,540 pulses/rev |
Symmetry |
N/A 180º ±18º Electrical |
Index |
N/A 90º ±25º (Gated with A and B High) |
Quadrature Phasing |
N/A 90º ±36º Electrical |
Phase Sense |
N/A A leads B for CW shaft rotation as viewed from the shaft end of the encoder; Reverse phasing available |
Format |
N/A Two channel quadrature (AB) with optional Index (Z) outputs |
Waveforms |
N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf |
Certification |
N/A
 |
