Technical Specs

Brands

N/A
Dynapar™

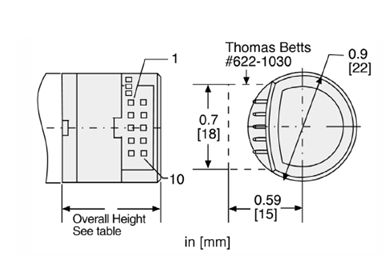

Model

N/A E9

Type

N/A Miniature Encoder

Code

N/A Incremental Optical

Resolution

N/A 100 to 512 pulses/rev

Symmetry

N/A 180º ±18º Electrical

Index

N/A 90º ±36º Electrical

Quadrature Phasing

N/A 90º ±18º Electrical

Phase Sense

N/A A leads B for CW shaft rotation

Certification

N/A

Features

N/A

  • Super-Compact Modular Encoder for Small Servo and Stepper Motor Feedback
  • Integrated ASIC for Enhanced Reliability and Accuracy
  • Up to 512 PPR Resolution
