Technical Specs

Brands

 N/A

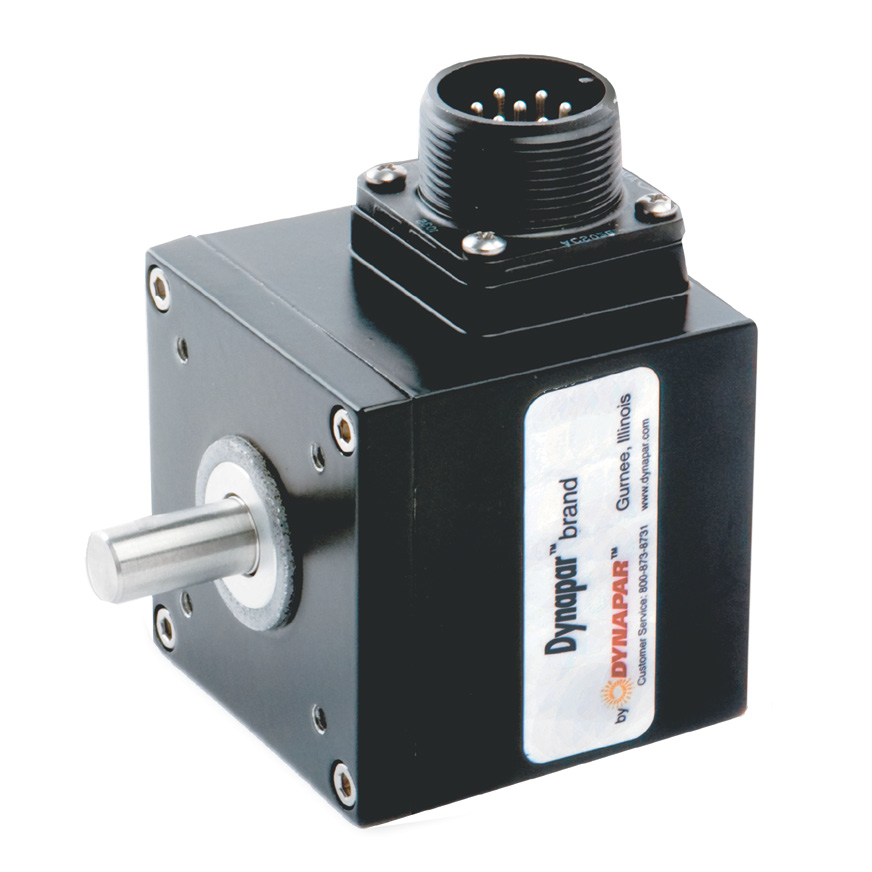

Dynapar™

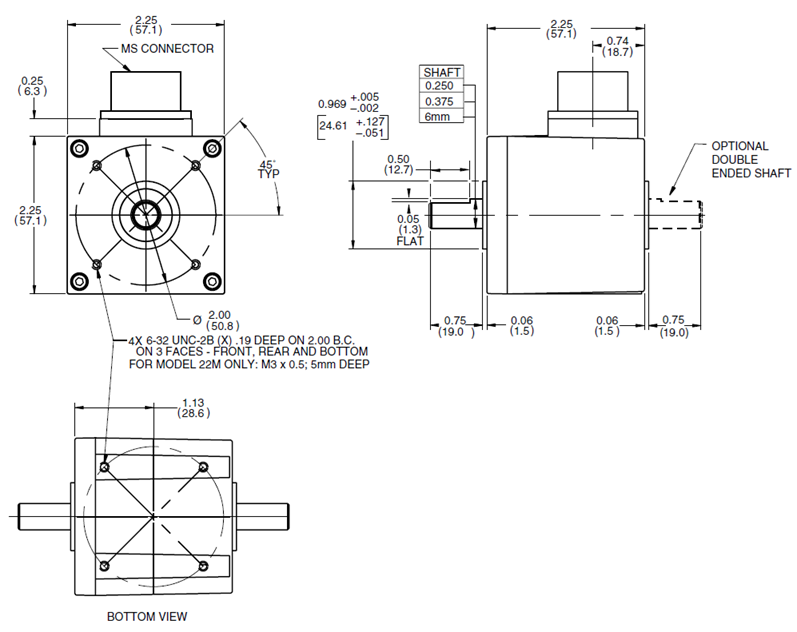

Model

 N/A 22

Type

 N/A Encoders

Code

 N/A Incremental Optical

Resolution

 N/A 1 to 20,000 pulses/rev

Format

 N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs

Phase Sense

 N/A A leads B for CW shaft rotation when viewing the shaft farthest from connector or cable

Quadrature Phasing

 N/A 90º ±30º Electrical

Symmetry

 N/A 180º ±25º Electrical

Index

 N/A 180º default gated to B low

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

  • Up to 20,000 Pulses Per Revolution
  • IP67 Sealing Options for Shaft & Cable Exit Designs
  • Wide Temperature Range for Challenging Environments
  • Robust Bearing Design for Superb Shaft Loading
  • Dual Shaft Option for Mechanical Redundancy
