Unit of Measure

Technical Specs

Brands

N/A
Dynapar™

Model

N/A F15

Type

N/A Small Servo Motor

Code

N/A Incremental with Commutation Option Optical

Resolution

N/A 1024 or 2048 ppr incremental with 6 or 8 pole commutation channels

Accuracy

N/A Incremental: ±2.5 arc-mins. max. edge to any edge; Commutation: ±6 arc-mins. max.

Minimum Edge Separation

N/A A to B is 45º

Index to U Channel

N/A ±1º mech. index pulse center to U channel edge.

Index Pulse Width

N/A 90º gated A and B high

Certification

N/A

Key Features

N/A

  • Digital Encoder with Flex Servo Ring Easily Replaces Size 15 Resolver

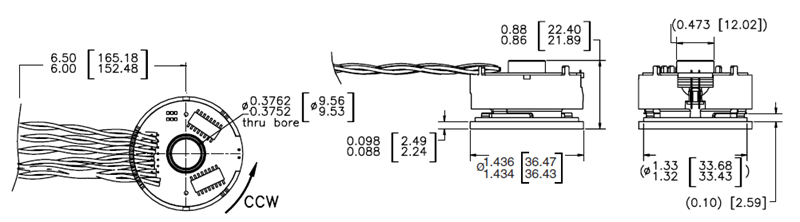

  • Short 0.88" Mounting Depth with Jam Nut Shaft Fixing Makes Installation Easy
  • Superior ±2.5º Arc-Min Accuracy
