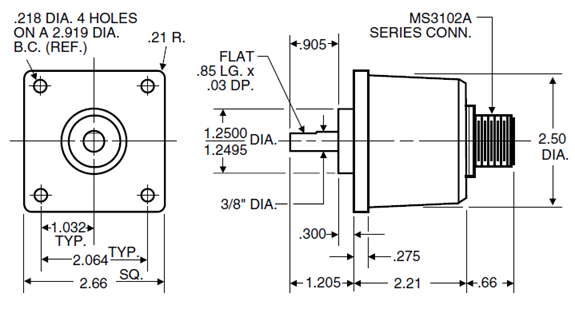

Technical Specs
Brands |
N/A
 Dynapar™ |
Model |
N/A H42 |
Type |
N/A Shafted Incremental Encoder |
Code |
N/A Incremental Optical |
Resolution |
N/A 1 to 600 pulses/rev |
Format |
N/A Two channel quadrature (AB) with complementary outputs |
Phase Sense |
N/A A leads B for CW shaft rotation as viewed from the shaft end of the encoder |
Quadrature Phasing |
N/A 90º ±20º Electrical |
Symmetry |
N/A 180º ±18º Electrical |
Waveforms |
N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf |
Certification |
N/A
 |
