Unit of Measure

Technical Specs

Brands

N/A
Dynapar™

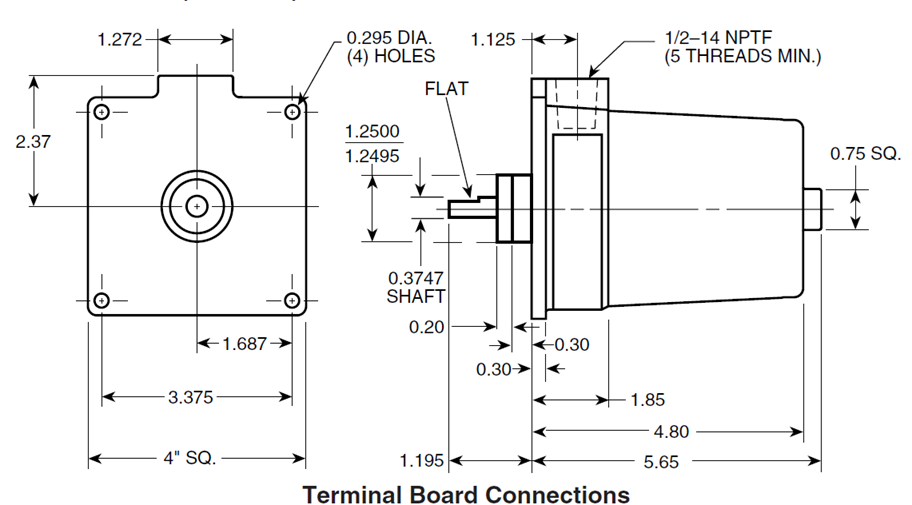

Model

N/A X25

Type

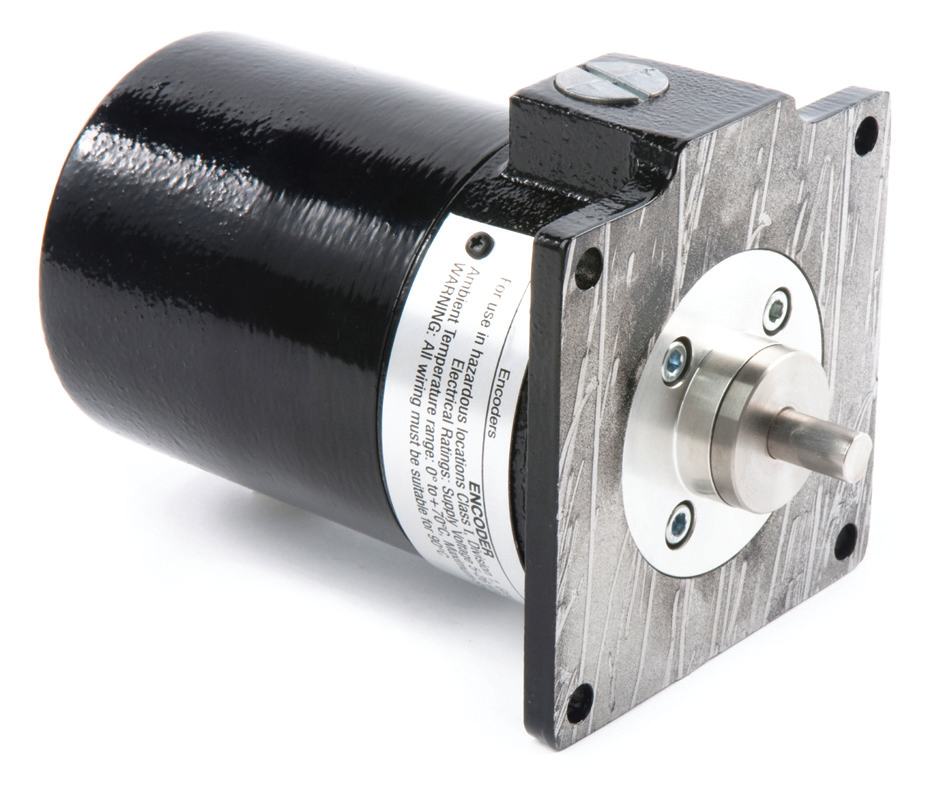

N/A Hazardous Duty Encoder

Code

N/A Incremental Optical

Resolution

N/A 1 to 5,000 pulses/rev

Phasing Sense

N/A A leads B for Counter-Clockwise rotation (CCW) shaft rotation as viewed from the shaft end of the encoder

Quadrature Phasing

N/A 90º ±25º Electrical

Symmetry

N/A 90º ±25º Electrical

Waveforms

N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

N/A

Key Features

N/A

  • Approved for NEC Class 1 Div 1&2 Groups C & D
  • Approved for NEC Class 2, Div 1&2, Groups E, F, & G
  • Rugged Enclosure with 1/2" Conduit Entry
  • 5000 PPR Capability
  • Environmentally Sealed and Corrosion Resistant
