Technical Specs

Brands

 N/A
Dynapar™

Harowe™

Model

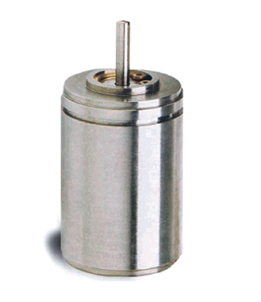

 N/A 11/R11

Type

 N/A Resolver
Speed1 N/A 1 2 4 5

Primary Winding

 N/A Rotor Stator

Accuracy

 N/A 10 arc·min20 arc·min4 arc·min5 arc·min6 arc·min7 arc·min

Input Voltage

 N/A 1.88 Vrms10.0 Vrms11.8 Vrms12.0 Vrms26.0 Vrms6.0 Vrms7.0 Vrms7.5 Vrms8.5 Vrms

Frequency

 N/A 400 Hz1,000 Hz2,000 Hz2,250 Hz2,500 Hz4,000 Hz5,000 Hz

Maximum Input Current

 N/A 1.4 mA3.1 mA5.0 mA6.0 mA8.3 mA10.9 mA11.0 mA12.0 mA13.5 mA14.0 mA15.0 mA21.0 mA40.0 mA70.0 mA

Transformation Ratio (Vout/Vin) 10 Percent (%)

 N/A 0.39 0.45 0.50 0.53 0.54 0.55 0.84 0.95 1.00 1.02 1.07 1.40 1.75

Phase Shift

 N/A -7 º-6 º-5 º-3 º-2 º-1 º0 º3 º4 º7 º8.5 º11 º12 º

Total Null Voltage

 N/A 15 mV20 mV30 mV

Certification

 N/A

Key Features

N/A

  • Brushless Construction is Ideal for Brushless Servo Motors
  • Shortest Length in the Industry for Easy Mounting
  • Up to 125ºC Temperature Range
  • Radiation-Hardened Models Available
  • 1 Speeds are defined as follows: 1 = single speed; 2 = 2-speed; etc
