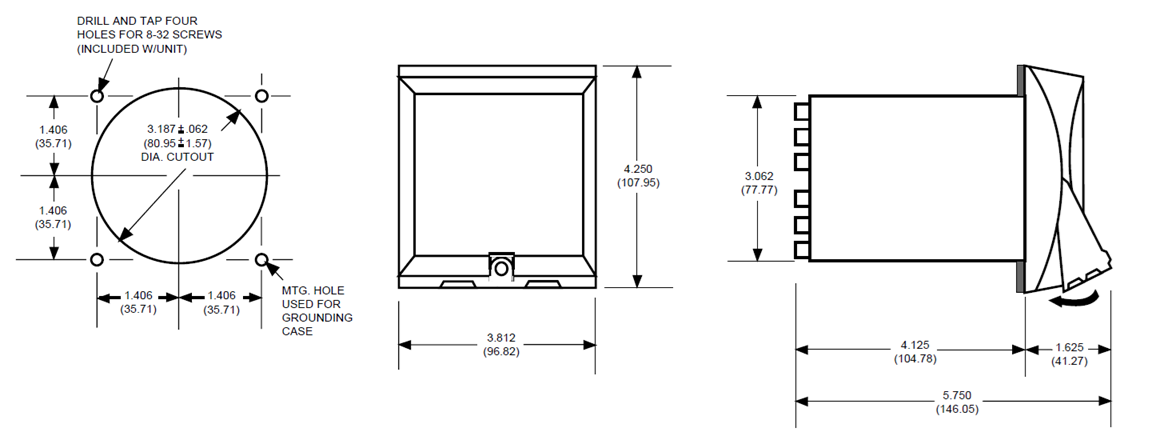

The high quality timer that has become an industry standard knob setpoint, cycle progress pointer, pilot light, and patented plug-in housing
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A HP5

Type

 N/A Reset Timer

Reset Time

 N/A 1/2 second at maximum setting

Voltage/Frequency

 N/A 120 V (+10, -15%), 60 Hz
240 V (+10, -15%), 60 Hz

Burden

 N/A Motor: 2.45 VA, 120 VAC
Clutch: 10.5 VA

Output Rating

 N/A 10 amps, resistive, 120 VAC
5 amps, resistive, 240 VAC

Electrical Lifetime

 N/A Contingent on load characteristics. Average contact life at full load is 250,000 operations. At 1 amp load, switch life increases to 5 million cycles. Inrush current should not exceed 10 amps.

Power on Response

 N/A 28 ms average pull-in
17 ms average drop-out

Temperature Range

 N/A 0 to 140 ºF-18 to 60 ºC

Vibration

 N/A Unaffected by 2.5G sinusoidal vibration magnitudes in both directions of three perpendicular mounting axes imposed from 10 to 900 Hz

Approximate Weight

 N/A 2 lb14 oz

Certification

 N/A

Features

N/A

  • 16 standard time ranges from 5 seconds to 60 hours
  • Knob adjustable time ranges - progress pointer for each
  • Highly visible, calibrated dials (7.85 inch circumference)
  • Easily read and well-spaced calibrations
  • Red progress pointer displays remaining time interval
  • Pilot light indicates when timer motor is energized
  • Standard timers supplied with "power on" clutch operation
  • Optional reverse action clutch will not reset on power failure
  • 15 terminal ABS (UL rated 94V-0) molded housing has high impact resistance and will not support combustion
