Economical, accurate percentage timer for adjustable on time of a fixed cycle... ideal for irrigation control, chemical injection

The HQ4E® Series 48 Percentage timer is an accurate, economical, enclosed percentage timer designed for use in applications where a repetitive on time of a fixed cycle needs to be variable.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A HQ4E

Type

 N/A Percentage Timer

Voltage/Frequency

 N/A 24 VDC (+10, -20%)
120 VAC (+10, -15%) 50/60 Hz
240 VAC (+10, -15%) 50/60 Hz

Setability

 N/A ± 1 % of Total Time Cycle

Operating Temperature

 N/A -10 to 140 ºF-23 to 60 ºC

Maximum Power Consumption (Burden)

 N/A 1.2 W

Certification

 N/A

Features

N/A The HQ4E® series 48 percentage timer is ideally suited for:

  • Irrigation controls
  • Chemical feeding
  • Program temperature controls
  • Electric heaters, ovens
  • Motor control
  • Lubrication systems

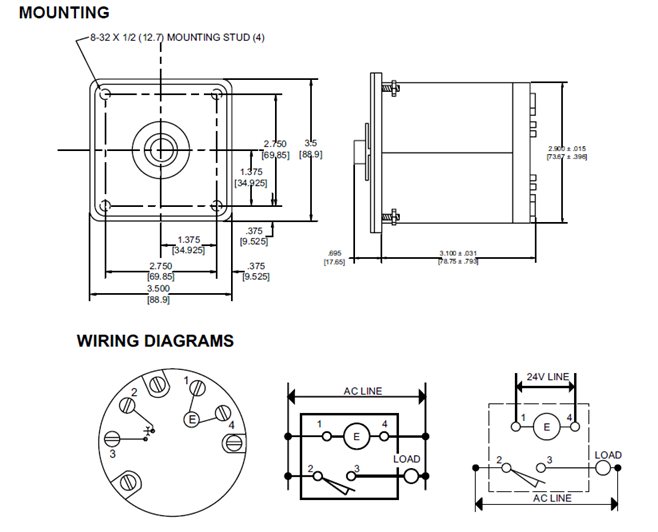

The HQ4 series 48 percentage timer is a panel mounted unit with exposed dial. The heavy-duty front dial plate has 4 mounting studs for simple and secure mounting to panels up to 1/4 inch thick. The load relays are enclosed for environmental protection. Electrical connections are made to captive screw terminals on the rear of the unit.
