A unique combination of versatility and simplicity make the Eagle Signal B866 Series the premiere low cost timing solution. Housed in a compact 1/16 DIN package, changing the set time is as simple as turning a dial.

Selectable time ranges provide preset times ranging from 0.06 seconds to 10 hours. The B866 is also field configurable to operate in On- Delay, Off-Delay, Interval, or Repeat Cycle timing modes. A unique On-Delay/Interval model lets the B866 perform two timing functions in one compact unit. In addition to working as an On- Delay timer, an independent output interval time is provided. The output interval can be set to one of eight time values through DIP switches located on the side of the unit.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A B866

Type

 N/A Timer

Start and Reset

 N/A Dry Contact Negative-Positive-Negative (NPN)

Alternating Current (AC) Supply Voltage

 N/A 100 to 240 V

Direct Current (DC) Power Supply Voltage

 N/A 24 V

Frequency

 N/A 50 Hz60 Hz

Setting Accuracy (±)

 N/A 5 %

Repeat Accuracy (±)

 N/A 0.5 %

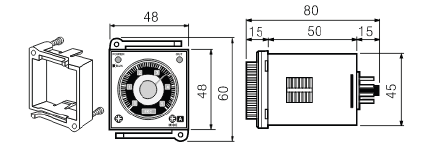

Dimensions

 N/A 48 x 48 mm

Depth

 N/A 81 mm

Mounting

 N/A Panel Mounting in 45 x 45 Cutout (Requires Optional Mounting Bracket) or DIN Rail

Operating Temperature

 N/A 0 to 55 ºC

Storage Temperature

 N/A -40 to 90 ºC

Front Panel Rating

 N/A International Electrotechnical Commission (IEC) Ingress Protection (IP65)

Weight

 N/A 100 g3.5 oz

Features

N/A

  • On-Delay, Off-Delay*, Interval, or Repeat Cycle modes
  • Universal power supply accepts 24 - 240 VAC or 24 VDC
  • Meets IEC 801 level 4 noise immunity standards
  • Industry standard socket connection
  • Front panel or DIN rail mounting
  • Flexible start and reset input signals
  • UL, CUL recognized, CE compliant
  • IP54 rated front panel

Additional Information

N/A An industry standard 11 pin socket connection simplifies wiring and makes replacing existing units quick and easy. The unit can be DIN rail mounted, or with optional hardware, panel mounted. Multiple time ranges allow settings from 0.06 seconds to 10 hours.

Harsh industrial environments are no problem for the B866 Series to survive in the toughest conditions.
