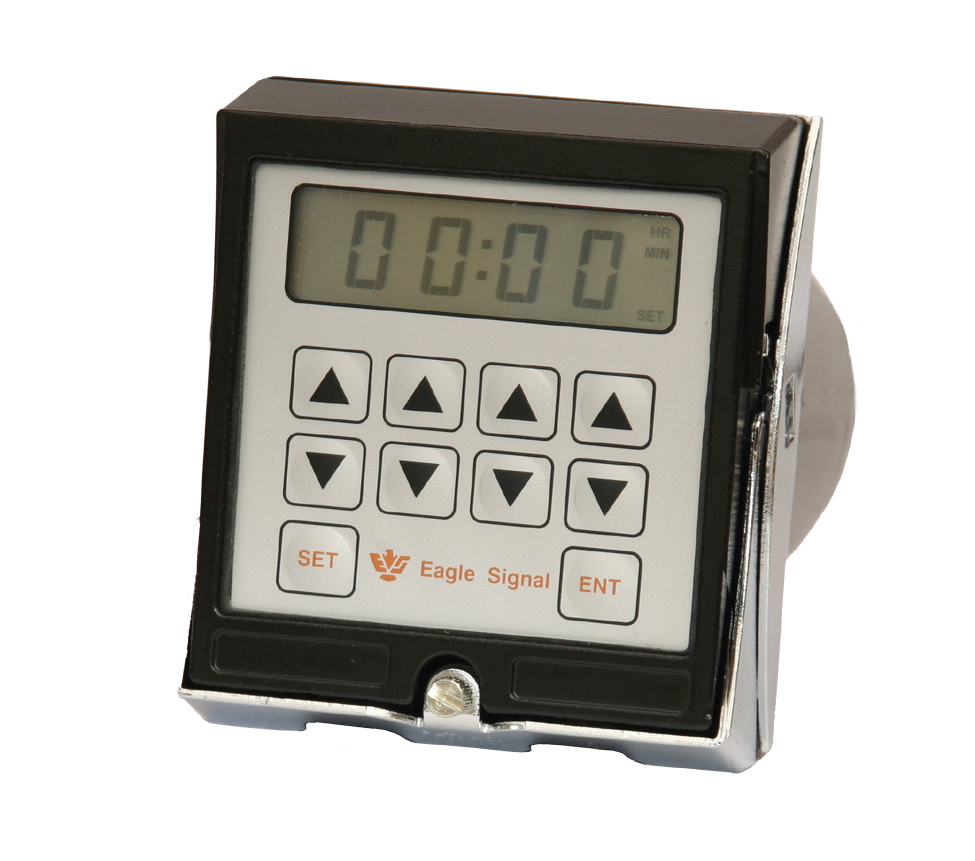

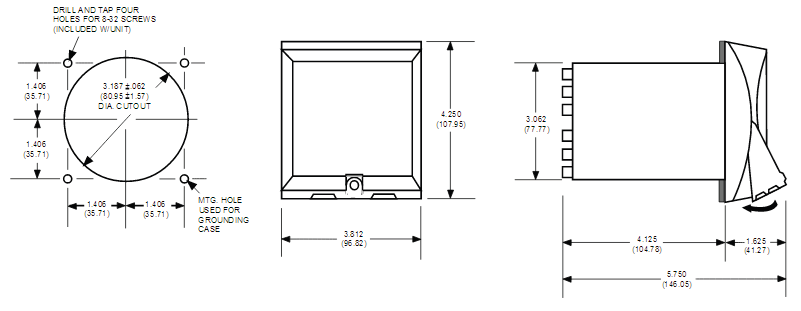

The CX100 Series is a solid state repeat cycle timer that will alternately turn an output on and off as long as power is applied to the unit. The CX100 Series is a microprocessor based timer with digital setting for greater setting accuracy than can be achieved with analog style repeat cycle timers. In addition to its greater setting accuracy, the CX100 Series timer is fully programmable to provide a number of time ranges and operating modes in one unit.

The ON and OFF time ranges are individually programmable for four time ranges from 199.99 seconds to 199 hours and 59 minutes. The CX100 Series timer is also programmable to have the ON time first instead of the OFF time first and to reset or non-reset on power interruption. The time ranges and the operating characteristics of the unit are programmed using 7 miniature rocker switches located inside the unit housing.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A CX100

Type

 N/A Timer

Operating Voltage/Frequency

 N/A A6 - 120 VAC, 50/60 Hz
B6 - 240 VAC, 50/60 Hz

Typical Repeatability (±)

 N/A 1/4% of Full Scale

Reset Time

 N/A 30 ms following voltage removal from simulated clutch input (CR1)

Power on Response

 N/A 300 ms maximum after voltage applied to terminal 11

Setting Accuracy

 N/A ±0.05% or 50 ms, whichever is larger (0ºC to 60ºC)

Repeat Accuracy

 N/A ±0.001% or 35 ms, whichever is larger (0ºC to 60ºC)

Operating Temperature

 N/A 32 to 140 ºF0 to 60 ºC

Static Discharge

 N/A Unit function is unaffected by a constant 3600 volt peak, 60 Hz discharge applied to the grounded front plate at a relative humidity of less than 25%

Vibration

 N/A Unit function is unaffected by 2.5G sinusoidal vibration magnitude in both directions of the perpendicular mounting axes imposed from 10 to 100 Hz

Certification

 N/A

Features

N/A

  • Housed in standard CYCL-FLEX® enclosure for easier removal, programming changes, and service
  • 4-1/2 digit (19999) liquid crystal display - 0.5 inch high
  • Annunciators (right of the display) flash to indicate ON time cycle and are constantly on to indicate OFF time cycle
  • Two socket mount 10 amp output relays - one performs ON/OFF cycle switching and the other is a set of instantaneous contacts that energize when power is applied to the start input and do not deenergize until power is disconnected from the start input
  • Time inhibit input allows timing function to be stopped without resetting the unit
  • Non-volatile memory data retention
