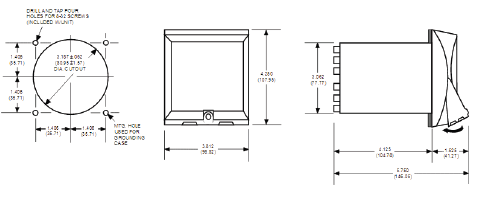

The CX200 Series is a microprocessor based timer/counter housed in a standard 15 terminal CYCL-FLEX® plug-in case. Time or count operation, time range, and standard or reverse start operation is selected by 7 miniature rocker switches located inside the unit housing.

Time or count setpoints are entered into the unit using a sealed membrane keypad on the front of the unit. Each digit in the setpoint is individually increased or decreased by pressing the appropriate keypad switch.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A CX200

Type

 N/A Timer

Operating Voltage/Frequency

 N/A A6 - 120 VAC, 50/60 Hz; B6 - 240 VAC, 50/60 Hz; K6 - 208 VAC, 50/60 Hz

Reset Time

 N/A 30 ms following voltage removal from simulated clutch input (CR1)

Power on Response

 N/A 300 ms maximum after voltage applied to terminal 11

Setting Accuracy

 N/A Time: ± 0.1% or 50 ms, whichever is larger (0º to 60ºC)
Count: 100%

Repeat Accuracy

 N/A ±0.001% or 35 ms, whichever is larger (0ºC to 60ºC); Count: 100%

Operating Temperature

 N/A 32 to 140 ºF0 to 60 ºC

Static Discharge

 N/A Unit function is unaffected by a constant 3600 volt peak, 60 Hz discharge applied to the grounded front plate at a relative humidity of less than 25%

Vibration

 N/A Unit function is unaffected by 2.5G sinusoidal vibration magnitude in both directions of the perpendicular mounting axes imposed from 10 to 100 Hz

Certification

 N/A

Features

N/A

  • Five different time ranges
  • Two count rates
  • Two relay outputs - socket mounted for easy replacement
  • N.O. solid state MOSFET, delayed action switch rated at 1 ampere continuous load current, 0-264 VAC 50/60 Hz or DC
  • Ideal output for switching low level signals and high voltage loads
  • Programmed outputs operate in one of four load sequences
  • Standard start is defined as ON delay reset timer or counter
  • For standard start units, timer/counter resets on power failure
  • Non-volatile memory data retention

Additional Information

N/A Time or count setpoint and progress is displayed on the front of the unit by a 4-1/2 digit liquid crystal display with 0.5 inch digits. Time or count subtracts from the setpoint and the output changes state at zero.

Operational mode annunciators also appear in the display area on the front of the unit. The mode annunciator flashes when the unit is timing or counting.
