Continuous repeat cycle timing in a compact 1/8 DIN case... fast, easy analog dial setpoint adjustment

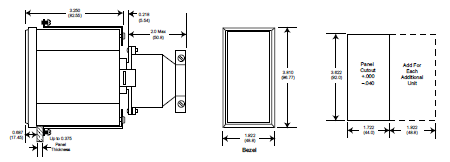

The DA100 is a solid state ON/OFF repeat cycle timer housed in a 1/8 DIN, molded NORYL® case. The timer uses CMOS integrated circuits for the timing function. Sixteen time ranges are available in any combination of ON and OFF periods. Two knobs reference to a calibrated scale provide the individual time settings. Two front mounted pilot lights indicate timing status.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A DA100

Type

 N/A Timer

Operating Voltage/Frequency

 N/A 120 VAC (+10 -15%), 50/60 Hz or 120 VDC (+10 -15%)
240 VAC (+10 -15%), 50/60 Hz or 240 VDC (+10 -15%)
24 VAC, 50/60 or 24 VDC

Repeatability (Constant Voltage and Temperature)

 N/A ±0.1% of setting or 25 ms, whichever is longer

Repeatability (Voltage and Temperature Variation)

 N/A Variable Voltage: ±1% of setting
Variable Temperature: ±2% of setting
Variable Voltage and Temperature: ±3% of setting

Reset Time

 N/A 65 ms

Cycle Progress

 N/A Pilot lights during ON time and OFF time

Power on Response

 N/A 30 ms maximum after line voltage applied to pins A and B

Power Interruption

 N/A Line voltage interruptions of 20 ms or less will not reset unit

Transient Voltage Immunity

 N/A Unaffected by 50 microseconds, 600 V peak transients superimposed on the line input

Setting Accuracy

 N/A Within ± 10% of maximum range

Operating Temperature

 N/A 32 to 140 ºF0 to 60 ºC

Vibration

 N/A Unit function is unaffected by 2.5G sinusoidal vibration magnitude in both directions of three perpendicular mounting axes imposed from 10 to 100 Hz

Certification

 N/A

Operation

N/A The timing base for each of the two timing states (ON time and OFF time) is generated by an internal oscillator set by a precision capacitor and a dial adjustable potentiometer. This allows accurate control over the long time ranges available with the DA1

Features

N/A

  • All connections made through standard square base relay socket
  • Available accessories for conversion into panel mount including a version with plug-in capability
  • Standard unit times its OFF period first and provides an isolated double pole - double throw relay contact output
  • Available options include ON-Time First timing and One-Cycle timing (previously required two time delay relays)
