Family of compact timers... 1/8 DIN housing mounts in standard relay socket

The DG100 is a solid state timer housed in a 1/8 DIN, molded NORYL® case. The timer uses CMOS integrated circuits for the timing function. The DG100 series timer is available in 16 time ranges from 3.5 seconds to 30 hours. Time is set with a knob referenced to a graduated scale. A pilot light on the front of the unit indicates when the unit is timing.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A DG100

Type

 N/A Timer

Operating Voltage/Frequency

 N/A 120 VAC (+10 -15%), 50/60 Hz or 120 VDC (+10 -15%)
240 VAC (+10 -15%), 50/60 Hz or 240 VDC (+10 -15%)
24 VAC (+10 -15%) 50/60 Hz or 24 VDC (+10 -15%)

Repeatability (Constant Voltage and Temperature)

 N/A ±0.1% of setting or 25 ms, whichever is larger

Repeatability (Voltage and Temperature Variation)

 N/A Variable Voltage: ±1% of setting
Variable Temperature: ±2% of setting
Variable Voltage and Temperature: ±3% of setting

Reset Time

 N/A 50 ms

Cycle Progress

 N/A Pilot light during timing

Power on Response

 N/A 30 ms maximum after line voltage applied to pins A and B

Power Interruption

 N/A Line voltage interruptions of 20 ms or less will not reset unit

Transient Voltage Immunity

 N/A Unaffected by 50 microseconds, 600 V peak transients superimposed on the line input

Setting Accuracy

 N/A Within ± 10% of maximum range

Operating Temperature

 N/A 32 to 140 ºF0 to -60 ºC

Vibration

 N/A Unit function is unaffected by 2.5G sinusoidal vibration magnitude in both directions of three perpendicular mounting axes imposed from 10 to 100 Hz

Certification

 N/A

Operation

N/A The timing base for the DG100 series timer is generated by an internal oscillator set by a precision capacitor and a dial adjustable potentiometer. This allows accurate control over long time ranges.

The unit times as long as power is applied to the control input terminal. The output contacts change state at the completion of the timing period. The unit resets when power is removed from the control input.

Features

N/A

  • All connections make through standard square base relay socket

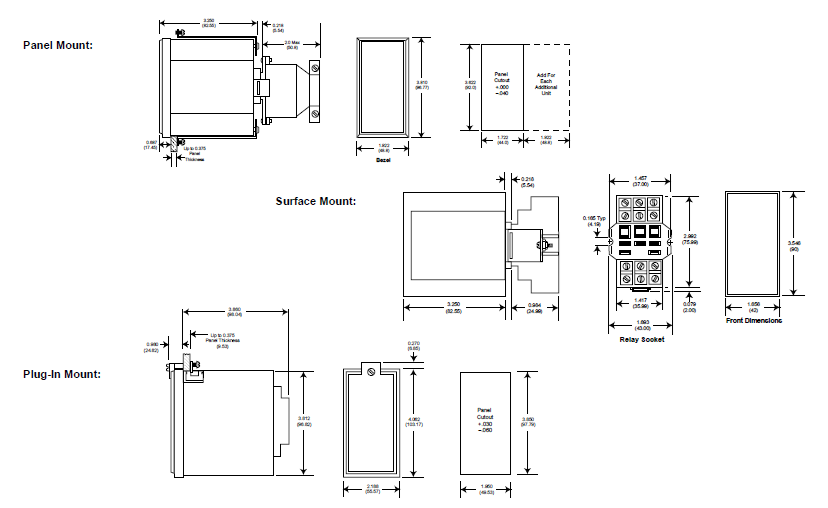

  • Available accessories for conversion into panel mount including a version with plug-in capability
  • Standard unit functions as ON-Delay timer in sustained start mode
  • Single relay with isolated double pole - double throw relay contact controls outputs
  • Timer operation can be configured as: interval output timer with momentary start.
