1/8 DIN sized plug-in timer with digital setpoint... 8 operating modes accommodate all popular timer configurations

The DG200 series timer is a microprocessor based, four digit reset timer housed in a 1/8 DIN style enclosure. Four push-button switches on the front of the unit provide exact setting of the time setpoint. There are four time ranges from 99.99 seconds to 99 hours and 99 minutes.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A DG200

Type

 N/A Timer

Operating Voltage/Frequency

 N/A A6 - 120 VAC, 50/60 Hz
The control input on the DG203 also operates at this voltage.

Reset Time

 N/A 35 ms

Power on Response

 N/A 35 ms

Transient Protection

 N/A Immune to 2500 volts peak transients up to 50 microseconds in duration

Setting Accuracy

 N/A ±0.01% of setting or 35 ms, whichever is larger

Operating Temperature

 N/A 32 to 122 ºF0 to 50 ºC

Static Discharge

 N/A Unit function is unaffected by a constant 3600 volt peak, 60 Hz discharge applied to the front plate at a relative humidity of less than 25%

Vibration

 N/A Unit function is unaffected by 2.5G sinusoidal vibration magnitude in both directions of the perpendicular mounting axes imposed from 20 to 100 Hz

Features

N/A

  • 5 amp SPDT relay output
  • Separate LED indicators to show timing and relay output operation
  • Recessed programming rocker switches with a protective cover to help prevent accidental switch changes
  • 0.01 second setting resolution for fast time cycles and easy to use minute: second and hour: minute time ranges
  • Optically isolated control input on the DG203 version
  • Time inhibit function on the DG203 version

Additional Information

N/A There are two versions of this timer series. The DG201 has six basic output operating modes. The DG203 has the six output modes of the DG201, but it also has a control input for Delay-On-Release and Single- Shot operation. In the other modes, the DG200 control input can be used for a time inhibit function which stops the timing cycle without resetting the unit. Rocker switches, located on the side of the unit, are used to program the time ranges and operating modes.

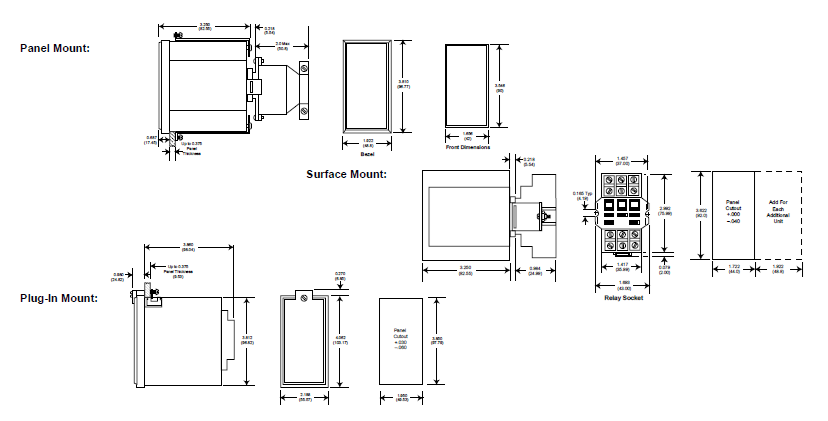

The DG200 timer can be mounted in three ways for use in most any application. The terminal connections for the unit are 3/16 inch terminals for use with a square base relay socket. This provides a means of mounting the unit within a panel. The DG200 timer can also be mounted through the front of the panel using either an economical fixed bezel kit or a unique plug-in housing which allows easy removal for programming changes and replacement.
