Repeat cycle timer and batch counter combined in a compact package... can control time cycle length plus number of cycles

The SX160 is a microprocessor based control that combines a repeat cycle timer with an internal batch counter. The batch counter counts the number of repeat cycle operations that the timer performs. The batch counter has its own programmable output and automatically stops the repeat cycle timer operation after the user programmed number of cycles.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A SX160

Type

 N/A Timer

Operating Voltage/Frequency

 N/A A6 - 120 VAC, 50/60 Hz
B6 - 240 VAC, 50/60 Hz

Reset Time

 N/A 15 ms

Transient Protection

 N/A Immune to 2500 volts peak transients up to 50 microseconds in duration

Setting Accuracy

 N/A Time: ±0.05% of setting or 50 ms, whichever is larger
Count: 100%

Repeat Accuracy

 N/A Time: ±0.001% of setting or 35 ms, whichever is larger
Count: 100%

Operating Temperature

 N/A 32 to 122 ºF0 to 50 ºC

Static Discharge

 N/A Unit function is unaffected by a constant 3600 volt peak, 60 Hz discharge applied to the grounded front plate at a relative humidity of less than 25%

Vibration

 N/A Unit function is unaffected by 2.5G sinusoidal vibration magnitude in both directions of the perpendicular mounting axes imposed from 10 to 100 Hz

Maximum Power On Response

 N/A 200 ms

Sensor Power Supply

 N/A +12 VDC, 75 milliampere

Features

N/A

  • NEMA 4 Hosedown Test rated
  • Two 5 amp SPDT relay outputs
  • Two output operating modes for the repeat cycle timer
  • Two output operating modes for the batch counter
  • Eight time ranges for the ON and OFF time
  • Time inhibit input
  • LED indicators for output status
  • Setpoint to zero or zero to setpoint cycle progress indication
  • Front panel and remote reset inputs
  • Keypad lock function
  • Nonvolatile memory (NOVRAM) for program and data retention
  • Removable terminal blocks for wiring connections

Additional Information

N/A The repeat cycle timer function has a SPDT relay output. The setpoints for the output ON and OFF times are individually programmable. There are eight time ranges available for the repeat timer function from 99.99 seconds to 999.9 hours.

The internal batch counter has its own SPDT relay output with two programmable operating modes. The batch counter output can operate in either an ON-Delay or Interval mode. The batch counter can be set to allow from 1 to 9999 cycles, or it can be set to provide continuous repeat cycle operation.

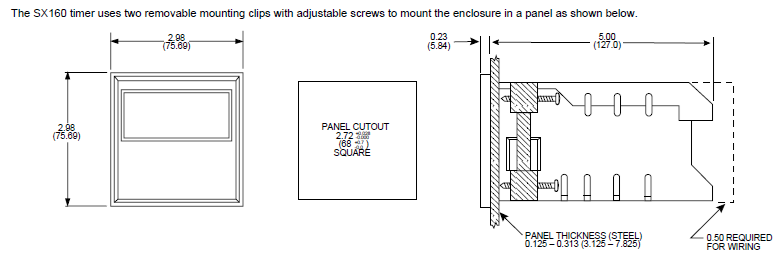

The SX160 is housed in a standard DIN case (68mm square cutout). The case and front bezel require minimal panel space yet provide easy to use programming keys and an easy to read .36 inch LED display.

The operating modes and time ranges for the unit are programmed using rocker switches on the back of the unit. This programming method provides both simplicity and security. The front panel display has a prompted programming routine that prompts the user when to program the ON and OFF times as well as the batch counter setpoint.
