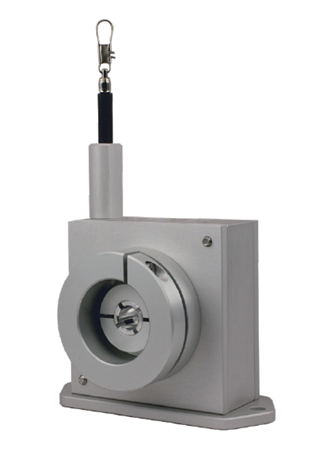

Available in wire lengths from one meter to 42.5 meters, the LCX draw wire is compatible with the following 58 mm shafted encoders with clamping flange: absolute encoder Model A58SE, which offers EtherNet/IP™, EtherCAT®, and PROFINET® communication protocols; Model A58SB, an absolute bus encoder that offers CANopen®, CAN SAE J1939, or SSI communication protocols with stainless and IP69K options available; Model 758, a high-performance incremental encoder; and the Model 858S, a stainless steel incremental encoder. Choose the right encoder and wire length for your application.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

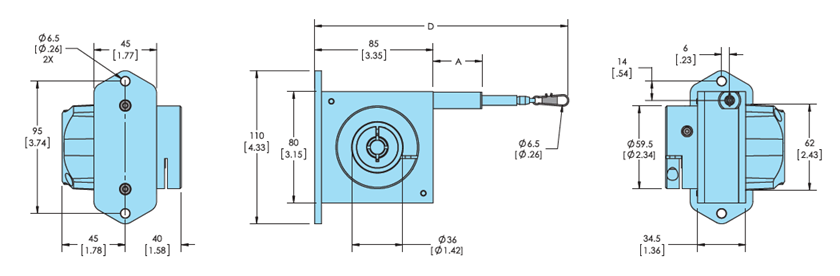

Model

 N/A LCX80

Type

 N/A Draw Wire Encoder

Encoder Requirements

 N/A Clamping flange diameter 36 mm; Shaft diameter 10 mm; Shaft length 20 mm

Measurement Range

 N/A 1 (1000 mm) 2 (2000 mm) 3 (3000 mm)

Sheave Circumference

 N/A 200 mm

Linearity with Encoder Output (±)

 N/A 0.05 %

Extraction Force Fmin

 N/A 4.2 to 5 N

Extraction Force Fmax

 N/A 1 m Wire = 5.4 N 2 to 3 m Wire = 6.4 N

Velocity Vmax

 N/A 8 m/s

Acceleration amax

 N/A 8 m/s²

Housing

 N/A Aluminum Anodized Spring Case PA6

Wire Material

 N/A Flexible Stainless Steel Wire

Corrosion Protection

 N/A Standard housing, V4A wire material, stainless steel bearings, and HARTCOAT® coating on wire drum

Common Applications

N/A Robotics, Extrusion Presses, Textile Machinery, Control Gate Positioning, Theater Stages, Elevators, Gantries, Boom Cranes, Fork Lift Booms

The LCX Series of Draw Wire Solutions is manufactured for EPC by our German technology partner.

Features

N/A

  • Fast and easy encoder mounting
  • Wire length options from 1 to 42.5 meters
  • Linearity ± 0.05 % of full range (with encoder)
  • Optional high corrosion protection
  • Temperature range -20 ºC to 85 ºC
  • Optional low temperature range of -40 ºC
