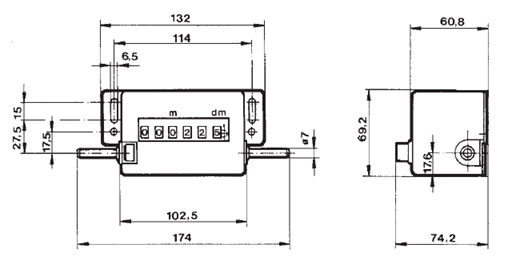

Integrated reset button and the 6-digit display with its 6.5 mm figures guarantee convenient use and good legibility with the Type 225 revolutions counter. Type 225 is also available as a length or stroke counter.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A 225

Type

 N/A Counter

Display

 N/A 6-Digit

Digit Height

 N/A 6.5 mm

Base Plate

 N/A Burnished Sheet Steel

Case

 N/A Die-Cast Metal

Approximate Weight

 N/A 170 g

Note for Approximate Weight

 N/A Counter with suspension device and downward weight approx. 2,400 kp. Downward weight can be shifted in order to regulate contact pressure

Reset

 N/A Button reset, secured against unauthorized operation

Cover

 N/A Gray Plastic Acrylonitrile Styrene Butadiene (ASB)

Warning

 N/A Don't push the reset pushbutton during the process

Features

N/A

  • Approved for length counting by the PTB (German Federal Institute für Physics and Technology)
  • Counter with suspension device
  • Adjustable counterweight
  • 6-digit display m/dm or m/cm
  • Button reset
