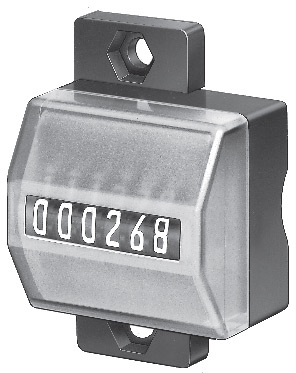

The easy-to-install Colibri is a robust, maintenance-free device that stands out because of its compact dimensions. This non-contact counter uses a magnetic drive. As a result, dirt and moisture cannot damage the Colibri. This dustproof counter features ingress protection IP 65. Not even water jets can find their way inside the Colibri.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A 490

Type

 N/A Counter

Display

 N/A 6 or 7-digit, depending on version

Digit Height

 N/A 4 mmVisual

Mounting

 N/A Depending on version

Case

 N/A Makrolon

Approximate Weight

 N/A 12 g

Counting Modes

 N/A Adding

Protection Class (DIN 4050)

 N/A Ingress Protection (IP65)

Operating Temperature

 N/A -10 to 50 ºC

Storage Temperature

 N/A -40 to 60 ºF

Mounting Position

 N/A Any

Maintenance-Free Operation

 N/A 10 million increments

Maximum Counting Frequency

 N/A 20 digits/s

Actuation

 N/A With conventional permanent magnets

Actuating Distance

 N/A Fe-version 0.5 mm
N and S magnets see order information

Response Flux Density

 N/A > 10 mT> 100 Gauss

Release Flux Density

 N/A < 4 mT< 40 Gauss

Actuating Speed

 N/A 2 m/s

Features

N/A

  • Contactless counting
  • Miniature size
  • Simple installation
