Technical Specs

Brands

 N/A
Hengstler

Model

 N/A AC 36

Type

 N/A Absolute Encoder

Certification

 N/A

Mechanical

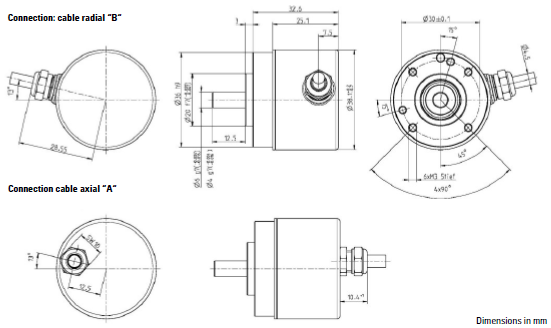

Housing Diameter

 N/A 38.1 mm

Shaft Diameter (Solid Shaft)

 N/A 6 mm

Shaft Diameter (Hub Shaft)

 N/A 8 mm

Maximum Speed (Continuous)

 N/A 10,000 rpm

Maximum Speed (Short Term)

 N/A 12,000 rpm

Typical Starting Torque

 N/A ≤ 1 N·cm at 20 ºC

Features

N/A

  • Up to 22 bit singleturn and 12 bit multiturn true absolute positioning
  • Available Interfaces include BiSS or SSI Interface
  • Small 38 mm diameter housing
  • Solid or Hubshaft version available
  • Wide -40 to +100ºC temperature range
