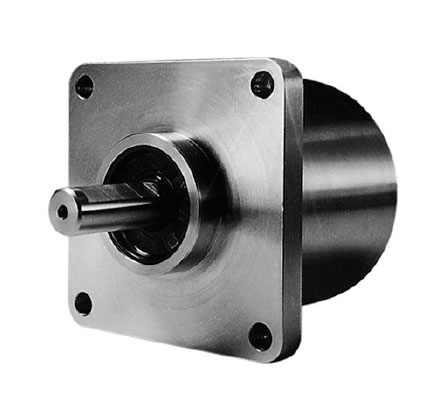

The absolute stainless steel encoders are available in the Versions AC 59 and AC 61

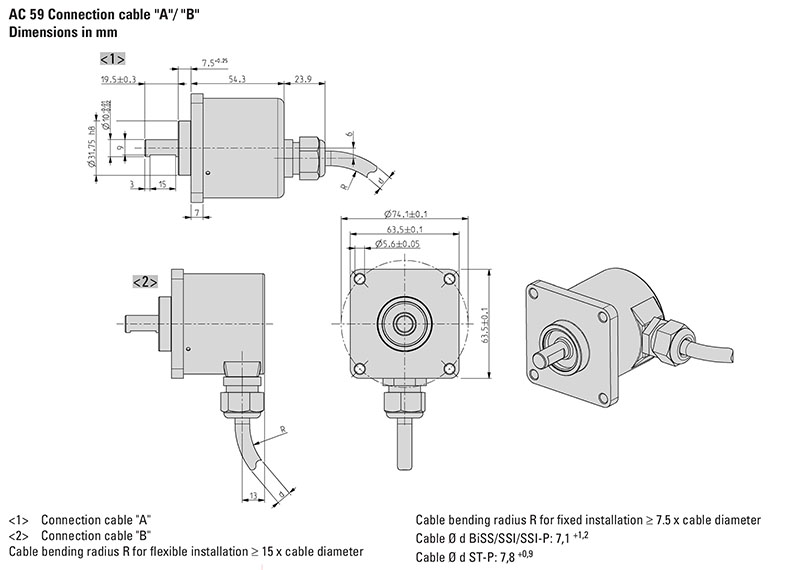

  • AC 59: drawn stainless steel housing, only together with cable outlet, no access to control elements
  • AC 61: machined housing, possible with cable or bus cover, access to control elements (DIP switch, Reset switch)
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A AC 59 - BiSS/SSI

Type

 N/A Stainless Steel Encoder

Certification

 N/A

Mechanical

Housing Diameter

 N/A 58 mm

Shaft Diameter (Solid Shaft)

 N/A 9.52 mm10 mm

Flange (Mounting of Housing)

 N/A Square Flange 63.5 mm

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP67)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP67)

Maximum Speed (Continuous)

 N/A 6,000 rpm

Maximum Speed (Short Term)

 N/A 10,000 rpm

Axial Shaft Load

 N/A 40 N

Radial Shaft Load

 N/A 60 N

Applications

N/A Packaging machine for food and beverage, ship equipment (e.g. cranes, winches, cable laying ships), offshore applications

Features

N/A

  • Compact design
  • High corrosion resistance
  • Robust design
  • Resolution up to 29 Bit (17 Bit ST, 12 Bit MT)
  • Versions with cable
