The RI32 incremental rotary encoder has been specially designed as an economical encoder for small devices. As a result of its ball-bearing mounted shaft, it achieves a high performance rating and has low start-up torque. It is typically used in laboratory machines, fitness machines and small machines.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A RI32-O

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 10 100 1000 1024 1500 20 200 250 256 360 400 5 50 500 512 60 600 720

Note for Number of Pulses

 N/A Other number of pulses on request.

Certification

 N/A

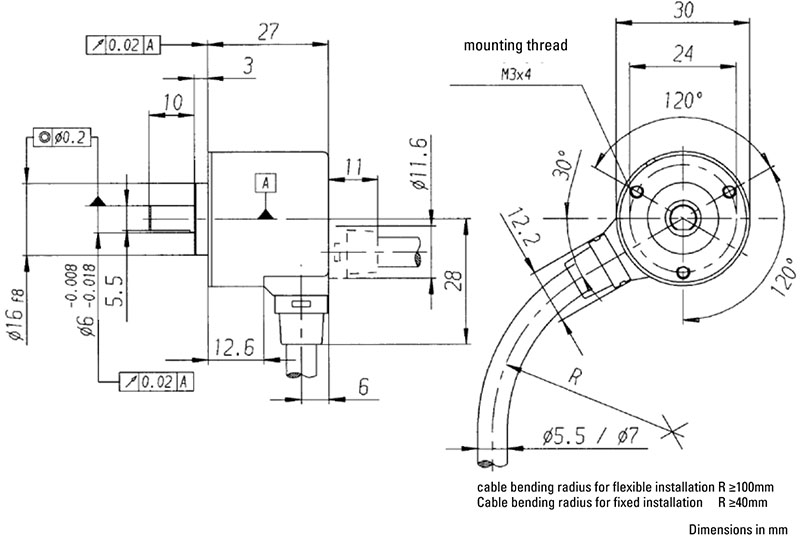

Mechanical

Housing Diameter

 N/A 30 mm

Shaft Diameter (Solid Shaft)

 N/A 5 mm6 mm

Flange (Mounting of Housing)

 N/A Pilot Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP40)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP50)

Axial Shaft Load

 N/A 5 N

Radial Shaft Load

 N/A 10 N

Maximum Speed

 N/A 6,000 rpm

Torque

 N/A ≤ 0.05 N·cm

Housing Material

 N/A Plastic

Applications

N/A Laboratory equipment, training equipment, crimping machines, tampon printing machines, miniature grinding machines

Features

N/A

  • Economical Encoder for small applications
  • Replacement for RIS & RI31
  • Incremental output TTL (5V) / HTL (5V & 10-30-V)
  • High efficiency by means of ball bearing
  • Small torque
