Economical small encoder that can withstand aggressive ambient conditions thanks to its IP64 ingress protection. With up to 1024 lines and many different output signals, it is suitable for use in many industrial fields of application.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A RI42-O

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 10 100 1000 1024 1250 128 144 20 200 25 250 2500 30 300 360 3600 400 5 50 500 512 60 600 72 720 900

Note for Number of Pulses

 N/A Other number of pulses on request.

Certification

 N/A

Mechanical

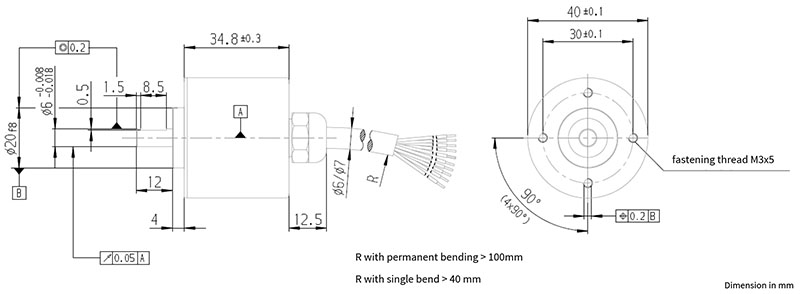

Housing Diameter

 N/A 40 mm

Shaft Diameter (Solid Shaft)

 N/A 6 mm

Flange (Mounting of Housing)

 N/A Pilot Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP64)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP65)

Axial Shaft Load

 N/A 5 N

Radial Shaft Load

 N/A 10 N

Note for Shaft Load Axial/Radial

 N/A Higher values on request

Maximum Speed

 N/A 10,000 rpm

Note for Maximum Speed

 N/A Higher values on request

Starting Torque

 N/A ≤ 1 N·cm

Housing Material

 N/A Plastic

Applications

N/A Textile machinery

Features

N/A

  • Economical miniature encoder
  • Incremental output HTL or TTL
  • High mechanical efficiency
  • Up to 4.096 steps with 1.024 pulses
  • 10.000 rpm continuous operation
