The universally applicable industrial incremental encoders in the RI58 family are characterized by being particularly flexible. There are a number of different versions offering a range of flanges and connections. These encoders are suitable for high shock loads and feature high signal accuracy and up to 40,000 steps with 10,000 marks and are particularly well suited to use in machine tools, CNC axes, packaging machines, motors / drives, injection moulding machines and sawing machines.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A RI58 H

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 1 10 100 1000 1024 125 1250 128 144 15 150 1500 1600 180 1800 2 20 200 2000 2048 25 250 2500 256 3 30 300 3000 314 3480 35 350 360 3600 375 4 40 400 4000 4096 45 460 480 5 50 500 5000 512 60 600 625 64 70 72 720 80 900

Note for Number of Pulses

 N/A Other number of pulses on request
Preferably available versions are printed in bold type.

Certification

 N/A

Mechanical

Housing Diameter

 N/A 58 mm

Shaft Diameter (Hub Shaft)

 N/A 10 mm12 mm

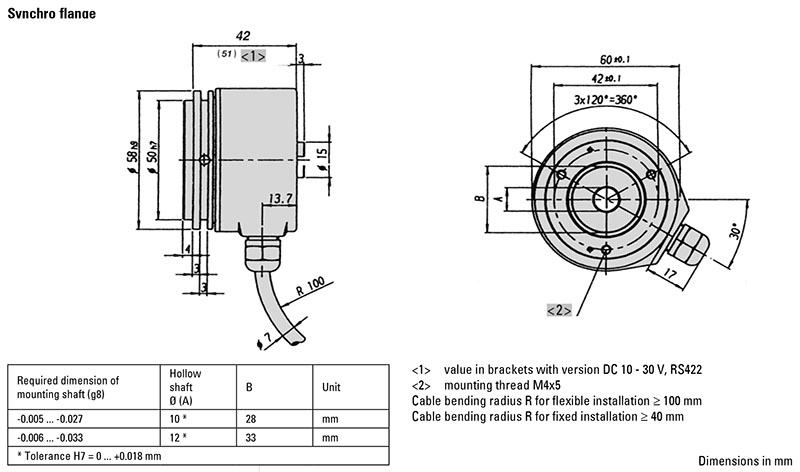

Flange (Mounting of Housing)

 N/A Synchro Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP64)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP64)

Maximum Speed

 N/A 3,000 rpm

Typical Starting Torque

 N/A ≤ 2 N·cm

Approximate Moment of Inertia

 N/A 65 g/cm² (10 mm shaft)
95 g/cm² (12 mm shaft)

Housing Material

 N/A Aluminum

Applications

N/A Textile machines, motors, drives, copiers

Features

N/A

  • Through hollow shaft
  • High accuracy by means of integrated flexible coupling
  • Safe shaft mounting
