The universally applicable industrial incremental encoders in the RI58 family are characterized by being particularly flexible. There are a number of different versions offering a range of flanges and connections. These encoders are suitable for high shock loads and feature high signal accuracy and up to 40,000 steps with 10,000 marks and are particularly well suited to use in machine tools, CNC axes, packaging machines, motors / drives, injection moulding machines and sawing machines.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A RI58CF

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 10000 3000 3480 3600 4000 4096 5000 7854

Note for Number of Pulses

 N/A Other number of pulses on request
Preferably available versions are printed in bold type.

Certification

 N/A

Mechanical

Housing Diameter

 N/A 58 mm

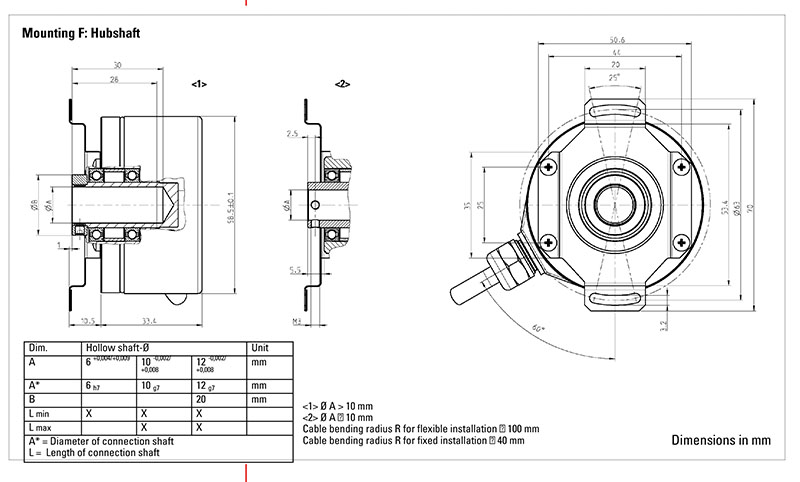

Shaft Diameter (Hub Shaft)

 N/A 6 mm10 mm12 mm

Shaft Diameter (Hollow Shaft)

 N/A 10 mm12 mm6 mm

Flange (Mounting of Housing)

 N/A Tether

Mounting of Shaft

 N/A Set screw, Front clamping ring, Rear clamping ring, Clamping ring with set screw

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP64)

Protection Class Housing (EN 60529)

 N/A Through Hollow Shaft - B: Ingress Protection (IP64)
Hub Shaft - F: Ingress Protection (IP67)

Maximum Speed

 N/A Hub Shaft- F: max. 4,000 rpm
Through Hollow Shaft - B: max. 6,000 rpm

Housing Material

 N/A Aluminum

Applications

N/A Feedback for asynchronous motors, industrial applications

Features

N/A

  • Incremental hollow shaft encoder
  • Through hollow shaft and hub shaft up to 12 mm
  • Optimized stator coupling
