Unit of Measure

Technical Specs

Brands

 N/A
Autonics

Model

 N/A ADIO

Type

 N/A Input /Output (I/O) Box

Direct Current (DC) Power Supply Voltage

 N/A 18 to 30 V

Direct Current (DC) Rated Voltage

 N/A 24 V

Current Consumption

 N/A 2.4 W ( ≤ 216 W)

Supplying Current Per Port

 N/A ≤ 2 A/Port

Sensor Current (US)

 N/A ≤ 9 A

Certification

 N/A

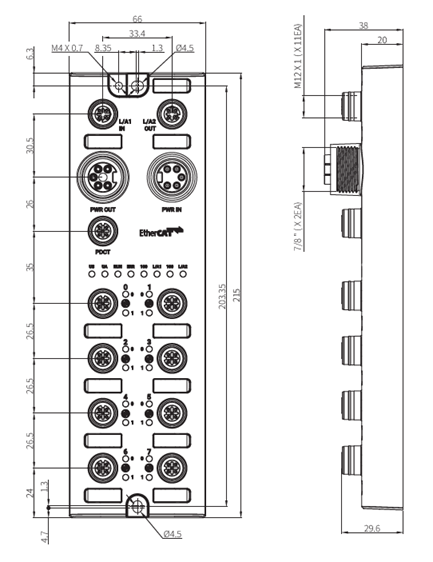

Dimensions

Width

 N/A 66 mm

Height

 N/A 215 mm

Depth

 N/A 38 mm

Features

N/A

  • Upper level communication protocol: EtherCAT
  • Lower level communication protocol: IO-Link ver. 1.1 (port class: Class A)
  • Daisy chain connection (network communication and power supply)
  • Maximum output current per port: 2 A
  • Housing material: Zinc Die casting
  • Protection rating: IP67, IP69K
  • I/O port setting and status monitoring (cable short circuit / disconnection, connection status, etc.)
