Technical Specs

Brands

 N/A
Autonics

Model

 N/A ARIO

Type

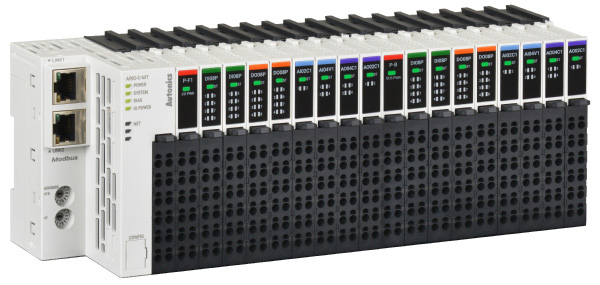

 N/A Slim Remote Input/Output (I/O) Module

Installation Method

 N/A DIN Rail Mounting

Ambient Temperature

 N/A -10 to 55 ºC, Storage: -25 to 70 ºC

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH

Protection Structure

 N/A Ingress Protection (IP20) (International Electrotechnical Commission (IEC Standard))

Material

 N/A Base: Polyamide6 Body: Modified Polyphenylene Oxide Polyoxymethylene Terminal: Polyamide6

Certification

 N/A

Features

N/A

  • I/O supported based on industrial Ethernet/Fieldbus serial communication for Smart Factory
  • Sequential multiple I/O distribution control via PLC, Industrial PC, etc.
  • Coupler: Supports a total of 8 different communications
    EtherCAT, CC-Link, ProfiNet, ProfiBus, Ethernet/IP, DeviceNet, Modbus TCP compatible, Modbus RTU compatible
  • Modules: Various Input/Output Modules, Power Modules
    • Remote ABUS/ I/O power, Digital input/output (4/8CH), Analog input/output (2/4CH), Temperature input (4CH)
    • Up to 64 modules can be extended (depending on communication)
  • Hot-swap function: Maintenance and setting can be restored automatically by replacing terminal and body during operation
  • Push-in connection method: Easy wire connection without tools helps reducing workload
  • Expanded user convenience with DAQMaster, a device integration management program
    • Module setting, real time control and monitoring/diagnosis of input/output signal (except ARIO-C-PN/PB)
    • Product selection and placement through virtual mode, offering recommended sorting
