Technical Specs

Brands

 N/A
Autonics

Model

 N/A ARM

Type

 N/A Modbus Sensor Connector Type Digital Remote Input/Output (I/O) Module

Direct Current (DC) Rated Voltage

 N/A 24 V

Direct Current (DC) Voltage

 N/A 12 to 28 V

Maximum Power Consumption

 N/A 3 W

Common

 N/A 8 Points

Communication Speed

 N/A 2400 bps4800 bps9600 bps19200 bps38400 bps57600 bps115200 bps

Communication Method

 N/A 2-Wire Half Duplex

Maximum Communication Distance

 N/A 800 m

Certification

 N/A

Features

N/A

  • Modbus RTU standard protocol
  • Connects with sensor connector, e-CON : saves wiring work (sensor connector, CNE Series, sold separately)
  • Compact size

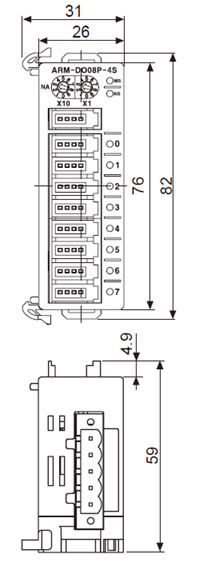

    • Small size with W26 x L76 x H54 mm to install at narrow space
    • Available DIN Rail mounting and screw lock mounting method
  • Real-time monitoring by various functions
    • Communication speed auto-recognition, Network power voltage monitoring
    • Reading number of expansion units and specifications, Reading model name of basic and expansion units
    • Monitoring Single byte input/output, Multi byte input/output and status Flag
  • Easy expansion
    • Available to connect up to 63 basic units per 1 master unit
    • Available to connect up to 7 expansion units per 1 basic units (controllable input/output for max. 64 points)
    • Combines the desired specifications of input/output by various input/output units
    • Organizes power and communication system by only communication cable lines
  • High reliability
    • Built-in surge, short, over-heat, reverse power polarity and static prevention circuits
