Technical Specs
Brands |
N/A
 Autonics |
Model |

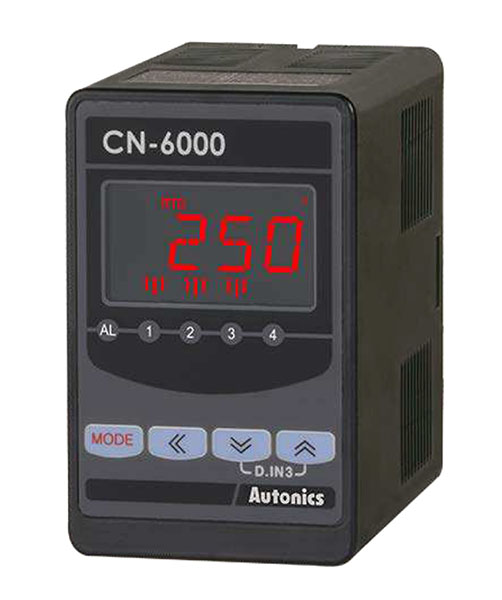

N/A CN-6000 |
Type |
N/A Converter |
Display Method |
N/A
12-Segment (selectable red, green, yellow) LCD (character size: 6.4 × 11.0 mm) Graphic bar and input type / unit display part (red) LCD (character size: 1.4 × 2.75 mm) |
Permissible Voltage Range |
N/A 90 to 110 % of rated voltage |
Insulation Resistance |
N/A ≥ 100 MΩ (500 VDC, Megger) |
Dielectric Strength |
N/A Between input terminal and power terminal: 2,000 VAC ~ 50/60 Hz for 1 minute |
Vibration |
N/A 0.75 mm double amplitude at frequency of 5 to 55 Hz in each X, Y, Z direction for 2 hours |
Noise Immunity |
N/A ± 2 kV the square wave noise (pulse width: 1 µs) by the noise simulator |
Memory Retention |
N/A ≈ 10 years (Non-volatile Semiconductor Memory type) |
Ambient Temperature |
N/A -10 to 50 ºC, Storage: -20 to 60 ºC (No Freezing or Condensation) |
Ambient Humidity |
N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation) |
Certification |
N/A
 |
