Technical Specs

Brands

 N/A
Autonics

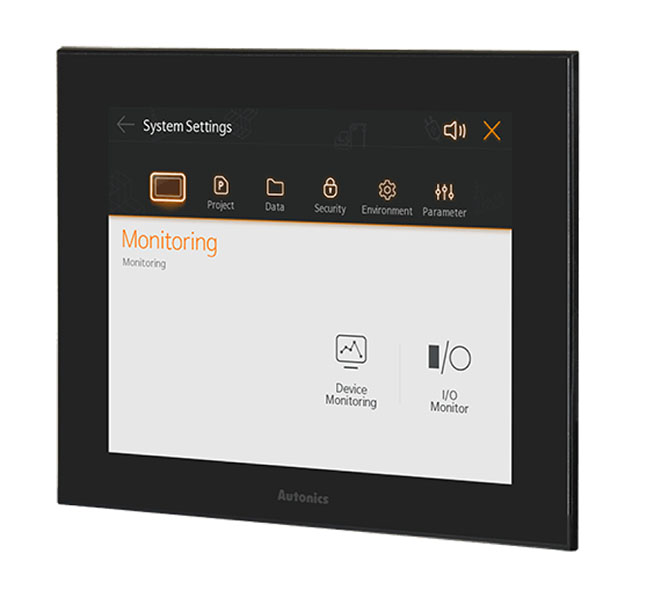

Model

 N/A LP-A

Type

 N/A Panel

Liquid Crystal Display (LCD) Type

 N/A Thin-Film Transistor (TFT) Color Liquid Crystal Display (LCD)

Backlight

 N/A White Light Emitting Diode (LED)

Backlight Life Cycle

 N/A 50,000 h

Sound (Magnetic Buzzer)

 N/A ≥ 85 dB

Direct Current (DC) Power Supply Voltage

 N/A 24 V

Allowable Voltage Range

 N/A 90 to 110% of Power Supply

Allowable Momentary Outage Time

 N/A ≤ 10 ms

Inrush Current

 N/A ≤ 20 A

Insulation Resistance

 N/A Between all terminals and case:≥ 100 MΩ (500 VDC, Megger)

Vibration

 N/A 0.75 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 1 hour

Shock

 N/A 147 m/s² (approx. 15 G) in each X, Y, Z direction for 3 times

Ambient Temperature

 N/A 0 to 50 ºC, Storage: -20 to 60 ºC (A Non Freezing or Condensation Environment)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (A Non Freezing or Condensation Environment)

Certification

 N/A

Features

N/A

  • Equipped with TFT LCD for realizing True color
  • Easier system configuration and use with PLC, HMI, I/O all-in-one design
  • Horizontal/Vertical installation according to environment
  • Available to monitor device of the connected controllers even without user screen data
  • Using user screen drawing program 'atDesigner'
    • More variety functions, objects and library image
    • Intuitive user interface
    • Multilingual table function: switching language of user screen by touching a button
  • Various communication interface: RS232C, RS422, Ethernet, CAN
