Request Quote
Unit of Measure

Technical Specs

Brands

 N/A
Autonics

Model

 N/A M4NS/M4YS

Type

 N/A Meter

Resolution

 N/A 1/12,000

Impedance Between Input Lines

 N/A ≤ 600 Ω

Display Scale

 N/A -1999 to 9999 (4-Digit)

Dielectric Strength

 N/A Between the charging part and the case : 2,000 VAC~ 50/60 Hz for 1 minute

Ambient Temperature

 N/A -10 to 50 ºC, Storage: -25 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • Loop-powered: power supplied by loop current
  • Measured input: DC 4 - 20 mA
  • Display range: -1999 to 9999
  • High / low-limit display scale function
  • Decimal point setting function
  • Input high / low-value correction function
  • Display peak value monitoring function
  • Set peak value monitoring delay time
  • Display cycle time setting (0.5 / 1 / 2 / 3 / 4 / 5 seconds)
  • Error display function

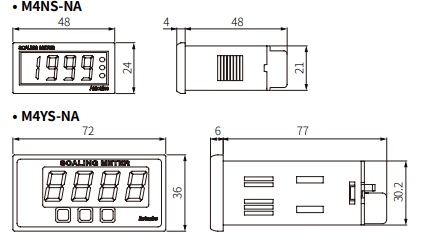

    • M4NS: DIN W 48 x H 24 mm
    • M4YS: DIN W 72 x H 36 mm
