Technical Specs

Brands

 N/A
Autonics

Model

 N/A MX4W

Type

 N/A Meter

Resolution

 N/A 1/12,000

Display Scale

 N/A -9999 to 9999 (4-Digit)

Permissible Voltage Range

 N/A 90 to 110 % of rated voltage

Dielectric Strength

 N/A Between the charging part and the case: 3,000 VAC~ 50/60 Hz for 1 minute

Ambient Temperature

 N/A -10 to 50 ºC, Storage: -20 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • LCD display with easy-to-read white PV characters
  • Isolated input and power modules allow powering of multiple units using a single power supply

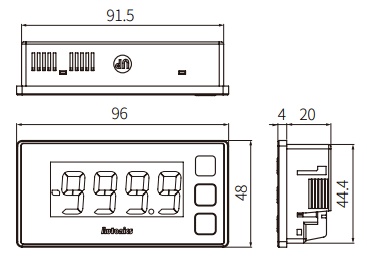

  • Compact, space-saving design (rear-length: 20 mm) : reduced rear-length size by 80 % compared to same DIN size panel meters (MT4W)
  • Various input options (by model) - Input options: DC / AC voltage, DC / AC current
  • Maximum allowed input: 500 VDC, 500 VAC~, DC 5 A, AC 5 A
  • Display range: -9999 to 9999
  • High / low-limit display scale function
  • AC frequency measurement (range: 0.100 to 1200 Hz)
  • Preset output: OUT1, OUT2 (NPN / PNP open collector output)
  • Power factor display / output function : displays analog outputs (1 - 5 V, 4 - 20 mA) from power factor converters as -0.50 to 1.00 to 0.50
  • Various functions : peak display value monitoring, display cycle delay, zero-point adjustment, peak display value correction, etc.
  • Power supply: 24 - 240 VAC~ 50 / 60 Hz, 24 - 240 VDC, universal
