Technical Specs

Brands

 N/A
Autonics

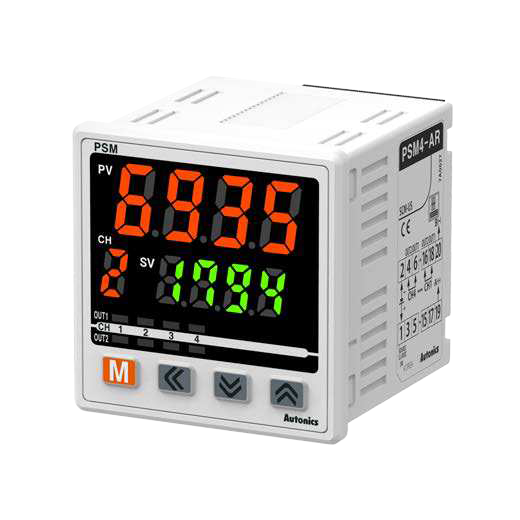

Model

 N/A PSM

Type

 N/A Indicator

Power Supply

 N/A 12 - 24 VDC (ripple P-P: ≤ 10%)

Permissible Voltage Range

 N/A 90 to 110 % of rated voltage

Power Consumption

 N/A ≤ 3 W

Current Consumption

 N/A ≤ 100 mA

Control Output

 N/A Negative-Positive-Negative (NPN) open collector output Positive-Negative-Positive (PNP) open collector output model

Direct Current (DC) Load Voltage

 N/A ≤ 30 V

Load Current

 N/A ≤ 100 mA

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Ambient Temperature

 N/A -10 to 50 ºC, Storage: -20 to 60 ºC (Rated at No Freezing or Condensation)

Ambient Humidity

 N/A 30 to 85% RH, Storage: 30 to 85% RH (Rated at No Freezing or Condensation)

Certification

 N/A

Features

N/A

  • Display 8 (PSM8) or 4 (PSM4) channels of pressure value from pressure sensors
  • Input range: 1 - 5 VDC, DC 4 - 20 mA (by model)
  • Pressure sensor model auto recognition (Autonics PSS Series pressure sensors)
  • Set PV display color by control output type (red/green)
  • Individual output indicators for each channel
  • RS485 (Modbus RTU) communication support
  • Refrigeration pressure control mode
  • Easy wiring and connection with sensor connectors (CNE)
  • Power supply: 12 - 24 VDC ±10%
