Request Quote
Unit of Measure

Technical Specs

Brands

 N/A
Autonics

Model

 N/A KRN1000

Type

 N/A Recorder

Resolution

 N/A 640 x 480 pixel

Touch Type

 N/A Resistive

Permissible Voltage Range

 N/A 85 to 110 % of rated power supply

Dielectric Strength

 N/A Between the charging part and the case: 2,300 VAC~50/60 Hz for 1 minute (except Ethernet and USB device)

Vibration

 N/A 10 to 60 Hz 4.9 m/s2 X, Y, Z in each X, Y, Z direction for 1 hour

Noise Immunity

 N/A Square shaped noise by noise simulator (pulse width 1 µs) ± 2 kV

Time Accuracy

 N/A Within ± 2 min / year (available up to 2099 year)

Ambient Temperature

 N/A 0 to 50 ºC Storage: -20 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

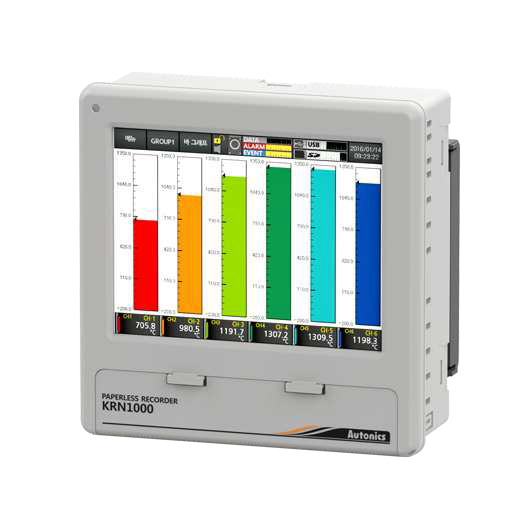

  • 5.6-inch color TFT LCD (640 × 480) touchscreen display with excellent readability and intuitive control interface
  • Supports maximum 16 input channel and 27 input types
  • Various communication methods (default option: RS422 / 485, Ethernet, USB)
  • 25 to 250 ms high-speed sampling, 1 to 3600 sec recording cycle
  • 200 MB internal memory and external SD / USB memory (up to 32 GB) support
  • Store and backup internal data to external SD / USB memory
  • 9 different graph types available
  • 4 types of option input / output available: digital input (non-contact / contact), alarm output, power output for transmitter
  • Compact, space-saving design (depth: 69.2 mm)
