Technical Specs

Brands

 N/A
Autonics

Model

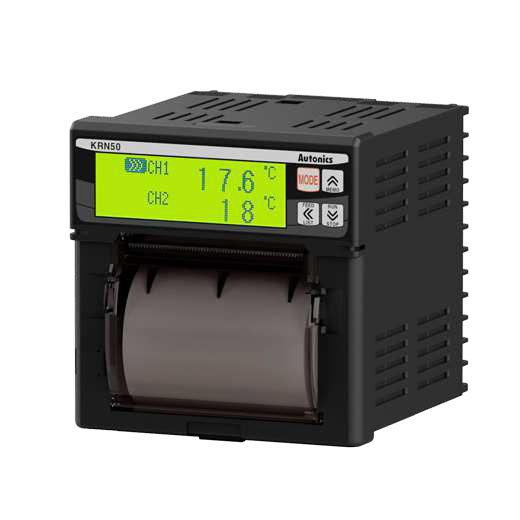

 N/A KRN50

Type

 N/A Recorder

Resolution

 N/A 128 x 32 pixel

Alarm Output Adjustment Sensitivity

 N/A Alarm output ON/OFF interval setting: 1 to 999 digit variable

Communication Output

 N/A RS485 communication output (Modbus RTU protocol method)

Setting Method

 N/A Setting with front key

Recording Paper

 N/A Thermal Direct Receipt Paper (57 mm x 16 m)

Recording Paper Supply Method

 N/A Clamshell Type

Dielectric Strength

 N/A Between the charging part and the case: 2,300 VAC~50/60 Hz for 1 minute

Vibration

 N/A 0.75 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 1 hour

Ambient Temperature

 N/A 0 to 50 ºC Storage: -20 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • 50mm thermal transfer method of paper recorder
  • Enables to record data without paper with the data logger function
  • Support two recording modes: graph mode, digital mode
  • Simultaneous recording of two channels
  • Enables to set parameters and monitor with RS485 communication and dedicated communication port
  • Multi-input with high accuracy 0.2% level (RTD, TC, Voltage, Current (shunt))
  • Supports various option I/O function

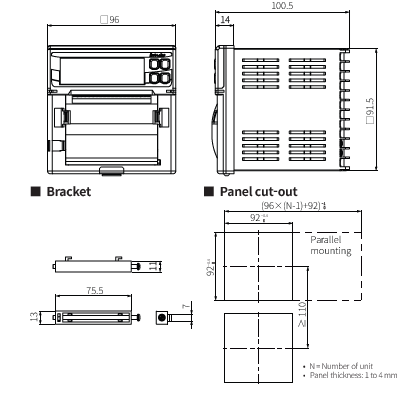

  • Small size (W96×H96×L100mm), light weight
