Technical Specs

Brands

 N/A
Autonics

Model

 N/A EP58

Type

 N/A Encoders

Resolution

 N/A ≤ 1024 Division

Maximum Response Frequency

 N/A 35 kHz

Maximum Allowable Revolution

 N/A 3,000 rpm

Current Consumption (No Load)

 N/A ≤ 100 mA

Dielectric Strength

 N/A Between the charging part and the case: 750 VAC~ 50/60 Hz for 1 minute

Vibration

 N/A 1 mm double amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A ≲ 50 G

Ambient Temperature

 N/A -10 to 70 ºC, Storage: -25 to 85 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 90% RH (No Freezing or Condensation)

Ingress Protection (IP) Rating (International Electrotechnical Commission (IEC) Standard)

 N/A Ingress Protection (IP50)

Certification

 N/A

Features

N/A

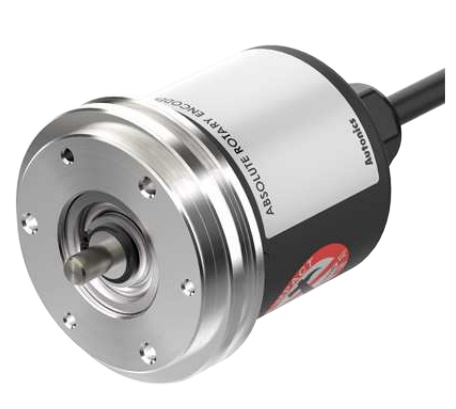

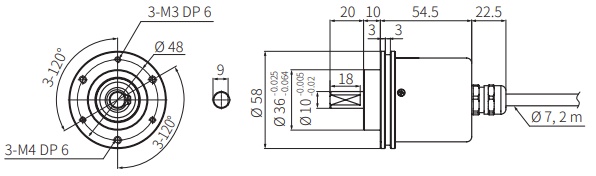

  • Ø 58 mm flange single-turn absolute rotary encoders
  • Shaft, blind hollow shaft models available
  • Various output codes available: BCD, binary, Gray code
  • Various resolutions: up to 10-bit (1024 divisions)
  • Power supply: 5 VDC, ± 5%, 12 - 24 VDC, ± 5%
